Same model may have multiple batches, images only for reference.

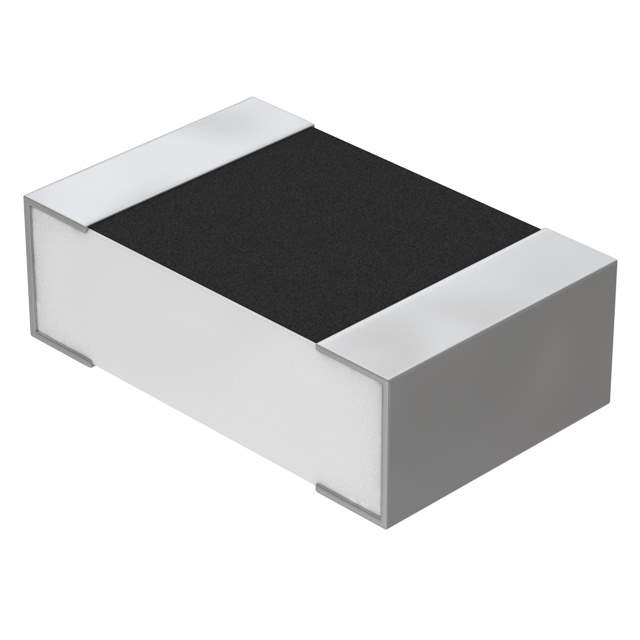

Y16242K80800B9R Real Image
Same model may have multiple batches, images only for reference.

Y16242K80800B9R

Part No Y16242K80800B9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.808KOHM 0.1% 1/5W 0805 / 2.808 kOhms ±0.1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VSMP
Package Tape & Reel
Resistance 2.808 kOhms
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1345602-Y16242K80800B9R
Ultra Librarian 3D Model Ultra Librarian Y16242K80800B9R CAD Model

Description

The Y16242K80800B9R is a chip resistor designed for surface mount applications.

  • Series: VSMP
  • Resistance: 2.808 kOhms
  • Tolerance: ±0.1%
  • Power Rating: 0.2W
  • Material: metal foil
  • Temperature Coefficient: ±0.2ppm/°C
  • Operating Temperature: -55°C to 150°C
  • Case/Package: 0805 (2012 metric)
  • Packaging: tape & reel
  • Quantity: 1,000 pieces
  • Height: 0.025" (0.64mm) seated
  • Terminations: 2
