Same model may have multiple batches, images only for reference.

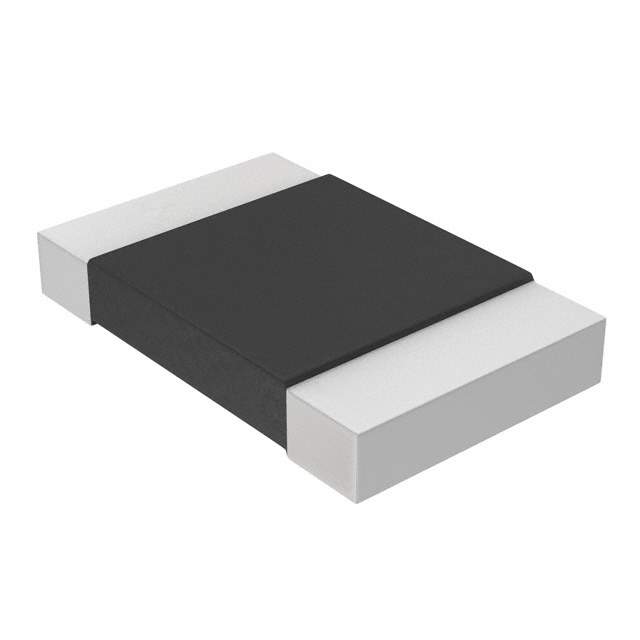

WSL0805R1500FEA Real Image
Same model may have multiple batches, images only for reference.

WSL0805R1500FEA

Part No WSL0805R1500FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.15 OHM 1% 1/8W 0805 / 150 mOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL0805R1500FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Resistance 150 mOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names WSLA-.15TR,WSLA-.15CT,WSLA-.15DKR
Standard Package 5,000
Win Source Part Number 984342-WSL0805R1500FEA
Ultra Librarian 3D Model Ultra Librarian WSL0805R1500FEA CAD Model

Description

The Vishay WSL0805R1500FEA is a chip resistor with a resistance of 150mOhms and a power rating of 0.125W.

  • Resistance: 150mOhms
  • Power Rating: 0.125W
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Package: 0805 (2012 Metric)
