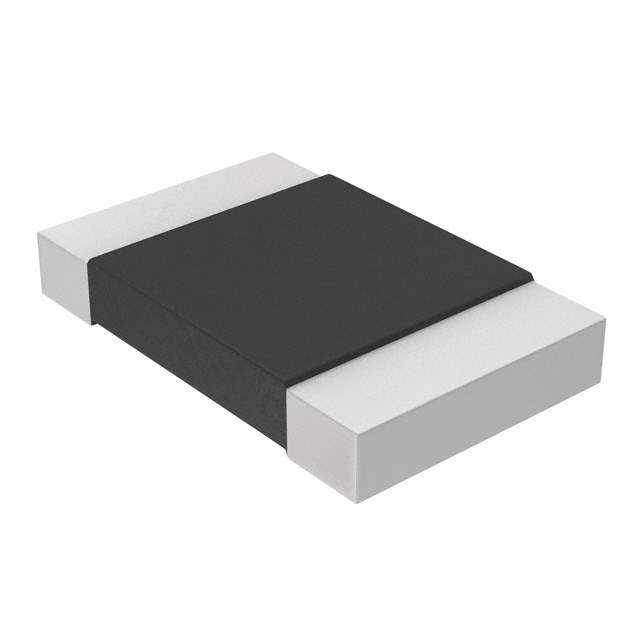

The WSL0805R0330FEA is a Vishay Dale Power Metal Strip® resistor. These resistors are designed for current sensing, voltage division, and pulse loading applications. They offer high power capability and low resistance values, making them suitable for demanding applications.

Applications

• Current sensing in power supplies
• Voltage regulation circuits
• Automotive electronics
• Motor control systems
• High-current applications

Features

• Power Metal Strip® construction
• Low resistance values (0.033 Ohms)
• High power rating
• Low inductance
• Excellent frequency response
• RoHS compliant

Benefits

• Accurate current sensing due to low resistance and tolerance
• Improved circuit efficiency due to low power losses
• Stable performance over temperature changes
• Reliable operation in harsh environments
• Reduced component count and board space

Additional Details

The WSL0805R0330FEA features a resistance value of 0.033 Ohms with a tolerance of 1%. It is housed in an 0805 surface-mount package. The resistor utilizes a solid metal alloy resistance element with a low temperature coefficient of resistance (TCR), ensuring stable performance over a wide temperature range. This resistor is ideal for applications requiring precise current measurement and control.

Technical Specifications:

• Resistance: 0.033 Ohms
• Tolerance: 1%
• Power Rating: Information not readily available, consult datasheet.
• Temperature Coefficient: Information not readily available, consult datasheet.
• Package: 0805
