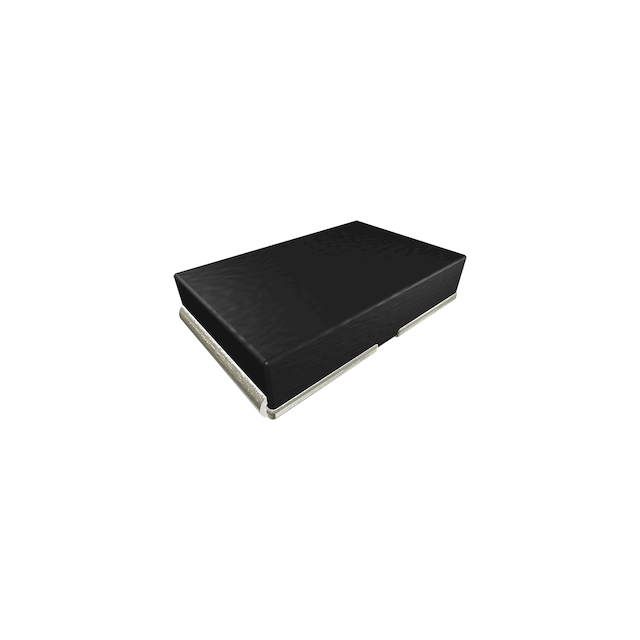

Same model may have multiple batches, images only for reference.

WSHM2818R1000FEA

Name: WSHM2818R1000FEA
Brand: Vishay
SKU: 1104908
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WSHM2818R1000FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 0.1 OHM 1% 7W 2818 / 100 mOhms ±1% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet	WSHM2818R1000FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Vishay Dale
Series	WSHM2818
Package	Tape & Reel
Resistance	100 mOhms
Tolerance	±1%
Power (Watts)	7W
Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±75ppm/°C
Temperature Range - Operating	-65°C ~ 170°C
Package / Case	Nonstandard
Supplier Device Package	2818
Ratings	AEC-Q200
Dimension	0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max)	0.069" (1.75mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	541-2638-1,541-2638-2,541-2638-6
Standard Package	3,500
Win Source Part Number	1104908-WSHM2818R1000FEA
Ultra Librarian 3D Model	Ultra Librarian WSHM2818R1000FEA CAD Model

Description

The Vishay Dale 1104908-WSHM2818R1000FEA resistor is a metal element chip resistor designed for automotive AEC-Q200 applications.

Resistance: 100 mOhms
Power Rating: 7W
Tolerance: ±1%
Temperature Coefficient: ±75ppm/°C
Series: WSHM2818
Moisture Resistant: Yes
Pulse Withstanding: Yes
Package: Tape and reel
Device Package: 2818
Terminations: Two
Temperature Range: -65°C to 170°C
AEC-Q200 Rated: Yes
