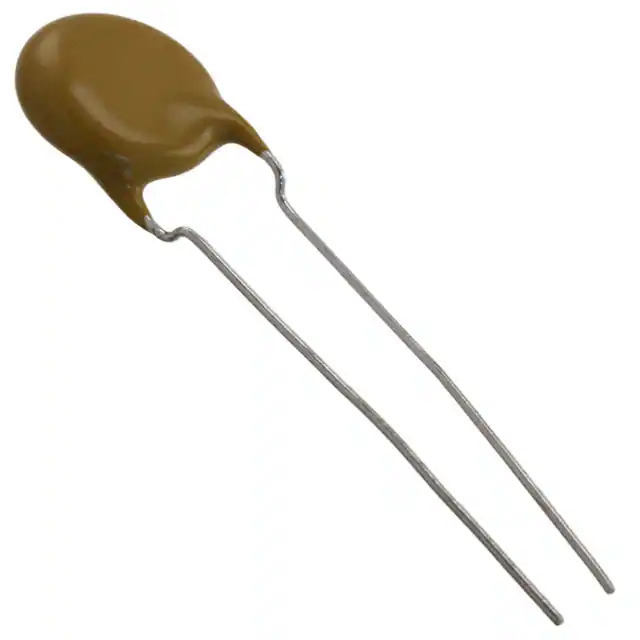

Same model may have multiple batches, images only for reference.
VY2472M49Y5US6UV7 Vishay
Same model may have multiple batches, images only for reference.

VY2472M49Y5US6UV7

Part No VY2472M49Y5US6UV7
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 440VAC Y5U RADIAL / 4700 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY2472M49Y5US6UV7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY2
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Features -
Ratings X1, Y2
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360540-VY2472M49Y5US6UV7
Ultra Librarian 3D Model Ultra Librarian VY2472M49Y5US6UV7 CAD Model

Description

The 1360540-VY2472M49Y5US6UV7 is a ceramic capacitor from Vishay Beyschlag/Draloric/BC Components.

  • Series: VY2
  • Capacitance: 4700 pF
  • Voltage Rating: 440VAC
  • Tolerance: ±20%
  • Mounting Type: Through-Hole
  • Package: Radial, Disc
  • Lead Spacing: 0.295" (7.50mm)
  • Size Dimension: 0.492" Dia (12.50mm)
  • Maximum Seated Height: 0.650" (16.50mm)
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Application: Safety
