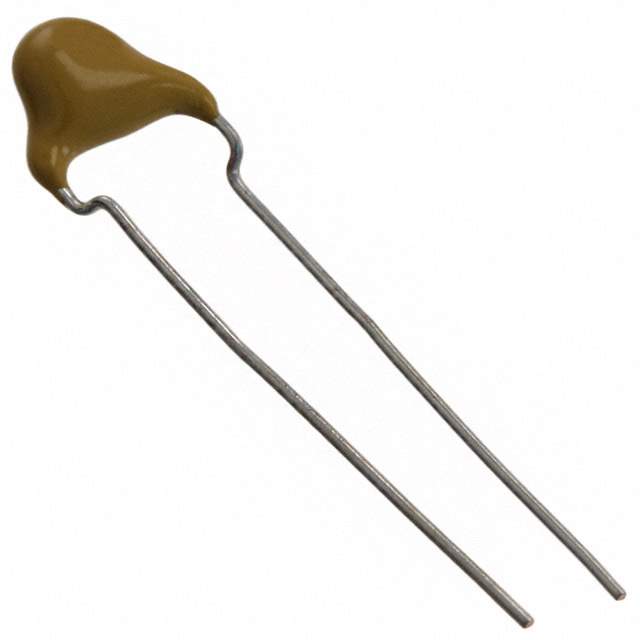

The VY2221K29Y5SS6TV7 is a ceramic disc capacitor manufactured by Vishay. It's designed for applications requiring high stability and reliability, such as in power supplies, lighting ballasts, and various electronic circuits. These capacitors are known for their ability to withstand high voltages and offer excellent performance in demanding environments.

Applications

• Power supplies (SMPS)
• Lighting ballasts (HID and LED)
• Snubber circuits
• EMI/RFI filtering
• High-voltage coupling
• DC-DC converters
• Inverter circuits

Features

• Ceramic disc construction
• High voltage rating
• High stability
• Low dissipation factor
• Non-flammable epoxy resin coating
• Compliant with safety standards (e.g., UL, VDE, CSA)
• Available with various lead spacings

Benefits

• Provides reliable performance in high-voltage applications
• Offers stable capacitance over a wide temperature range
• Reduces energy losses with a low dissipation factor
• Ensures safety with a non-flammable coating
• Facilitates easy mounting and connection with various lead options
• Meets industry safety requirements for global applications

Additional Details

The VY2221K29Y5SS6TV7 capacitor features a ceramic dielectric material that contributes to its high stability and low dissipation factor. The epoxy resin coating provides excellent insulation and protection against environmental factors. The capacitor is designed to meet stringent safety standards, ensuring its suitability for use in safety-critical applications. Specific electrical characteristics include its capacitance value, voltage rating, and temperature coefficient. The exact specifications can be found in the Vishay datasheet for this part number. The capacitor is available with different lead spacings to accommodate various PCB layouts and mounting requirements.
