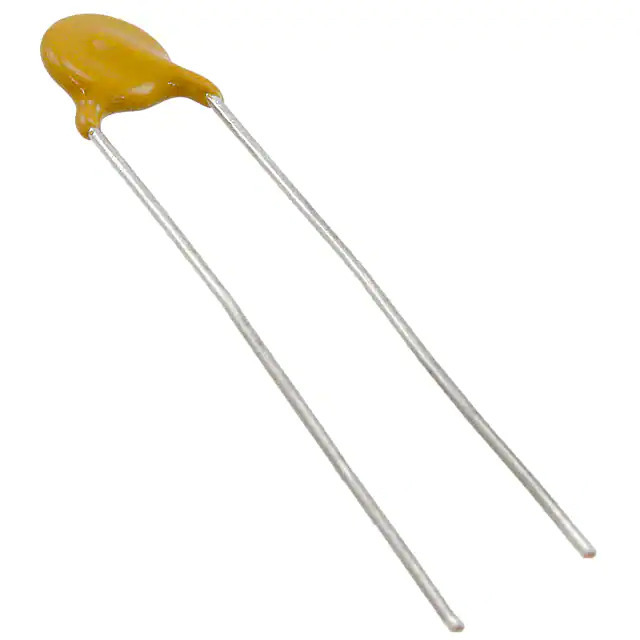

Same model may have multiple batches, images only for reference.
VY1222M47Y5UG63V0 Vishay
Same model may have multiple batches, images only for reference.

VY1222M47Y5UG63V0

Part No VY1222M47Y5UG63V0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 2200PF 760VAC Y5U RADIAL / 2200 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY1222M47Y5UG63V0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Features -
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360443-VY1222M47Y5UG63V0
Ultra Librarian 3D Model Ultra Librarian VY1222M47Y5UG63V0 CAD Model

Description

The VY1 series capacitors from Vishay Beyschlag/Draloric/BC Components are ceramic capacitors with a capacitance of 2200 pF and a voltage rating of 760VAC.

  • Capacitance: 2200 pF
  • Voltage Rating: 760VAC
  • Tolerance: ±20%
  • Ratings: X1 and Y1
  • Application: Safety Applications
  • Lead Spacing: 0.394" (10.00mm)
  • Package: Radial and Disc-Shaped
  • Size: 0.472" Dia (12.00mm)
  • Height: 0.630" (16.00mm)
  • Mounting Type: Through-Hole Mounted
  • Packaging: Bulk
  • Temperature Coefficient: Y5U (E)
  • REACH: Unaffected
