Same model may have multiple batches, images only for reference.

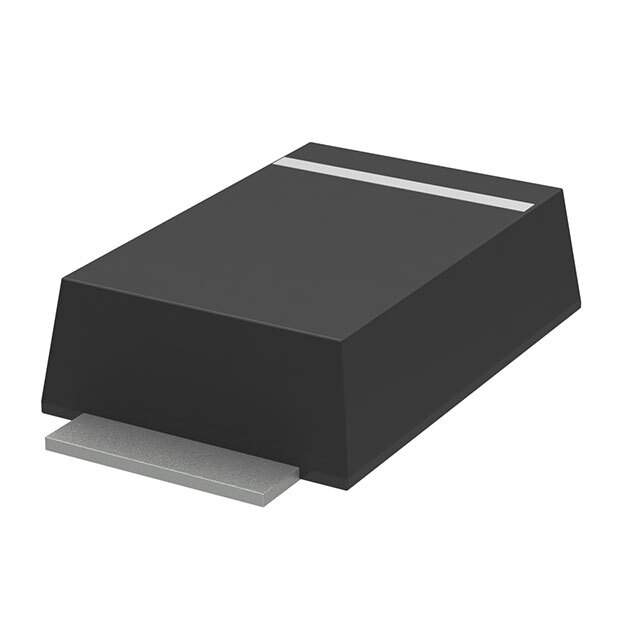

VSSAF3L45HM3_A/H Real Image
Same model may have multiple batches, images only for reference.

VSSAF3L45HM3_A/H

Part No VSSAF3L45HM3_A/H
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 3A DO221AC / Diode Schottky 45 V 3A (DC) Surface Mount DO-221AC (SlimSMA)
Datasheet
VSSAF3L45HM3_A/H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, TMBS®, SlimSMA™
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 3A (DC)
Voltage - Forward (Vf) (Max) @ If 450 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 450 µA @ 45 V
Capacitance @ Vr, F 425pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC (SlimSMA)
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number SAF3L45
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names VSSAF3L45HM3_A/HGIDKR,VSSAF3L45HM3_A/H-ND,VSSAF3L45HM3_A/HGICT,VSSAF3L45HM3_A/HGITR
Standard Package 3,500
Win Source Part Number 1112427-VSSAF3L45HM3_A/H
Ultra Librarian 3D Model Ultra Librarian VSSAF3L45HM3_A/H CAD Model

Description

The Vishay SAF3L45 Schottky diode is ideal for use in rectification applications.

  • Maximum Reverse Voltage: 45 V
  • Forward Voltage: 450 mV @ 3 A
  • Capacitance: 425 pF @ 4 V and 1 MHz
  • Junction Temperature Range: -40°C to 150°C
  • Package: DO-221AC (SlimSMA) with flat leads
  • Series: TMBS® and SlimSMA™
  • Packaging: tape and reel
  • Compliance: AEC-Q101 compliant
