Same model may have multiple batches, images only for reference.

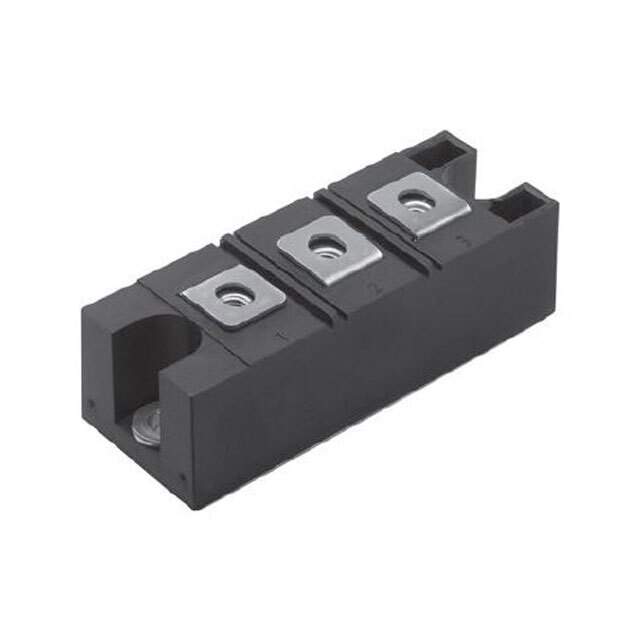

VS-VSKD166/16PBF Real Image
Same model may have multiple batches, images only for reference.

VS-VSKD166/16PBF

Part No VS-VSKD166/16PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Datasheet
VS-VSKD166/16PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) (per Diode) 82.5A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20 mA @ 1400 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case INT-A-Pak
Supplier Device Package INT-A-PAK
Base Product Number VSKD166
Other Names VSVSKD16616PBF
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282835-VS-VSKD166/16PBF
Ultra Librarian 3D Model Ultra Librarian VS-VSKD166/16PBF CAD Model

Description

The VSKD166/16PBF is a common cathode diode pair from Vishay General Semiconductor - Diodes Division.

  • Type: Standard recovery diode
  • Voltage Rating: 1600 V
  • Maximum Reverse Leakage Current: 20 mA @ 1400 V
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current per Diode: 82.5A
  • Operating Temperature Range: -40°C to 150°C
  • Mounting: Chassis mount
  • Package: INT-A-Pak package
  • Package Standard: 15
  • ECCN: EAR99
  • Ideal for: rectifiers, inverters, and DC power supplies
