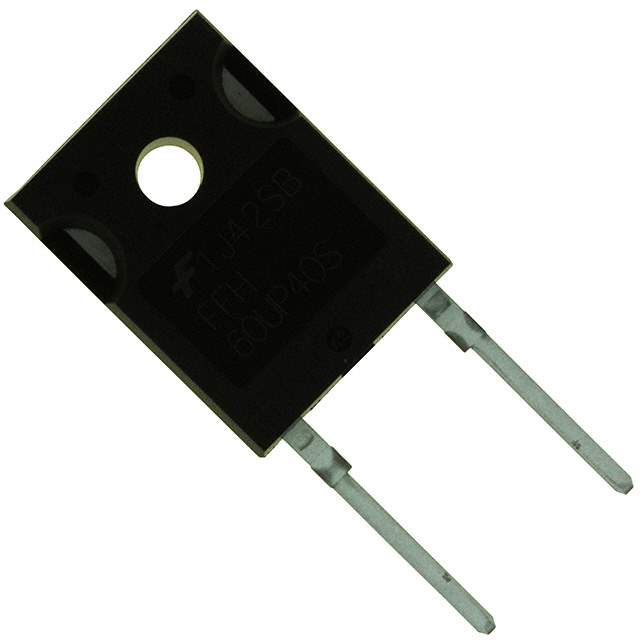

FFH60UP40S Real Image
Same model may have multiple batches, images only for reference.

FFH60UP40S

Part No FFH60UP40S
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 60A TO247
Datasheet
FFH60UP40S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 60A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 85ns
Current - Reverse Leakage @ Vr 100μA @ 400V
Mounting Through Hole
Case / Package TO-247-2
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 1038581-FFH60UP40S
Popularity Medium
Supply and Demand Status Limited
Quantity per package 450
Ultra Librarian 3D Model Ultra Librarian FFH60UP40S CAD Model

Description

The Fairchild/ON Semiconductor FFH60UP40S is a standard diode with a voltage DC reverse of 400V and an average rectified current of 60A.

  • Type: standard diode
  • Voltage DC Reverse: 400V
  • Average Rectified Current: 60A
  • Reverse Recovery Time: 85ns
  • Current Reverse Leakage at Vr: 100μA @ 400V
  • Package: TO-247-2
  • Suitable for: discrete semiconductor products
