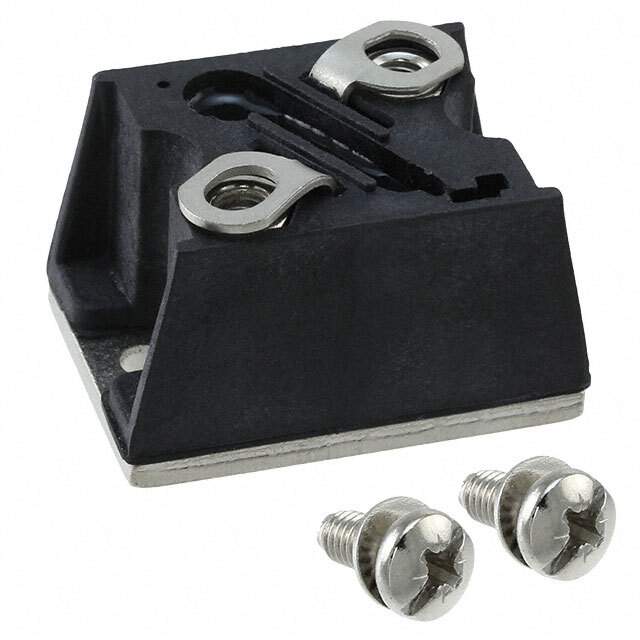

VS-T50RIA120

Part No VS-T50RIA120
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR PHASE CONT 1200V 50A D-55
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Structure Single
Number of SCRs, Diodes 1 SCR
Voltage - Off State 1200V
Current - On State (It (AV)) (Maximum) 50A
Current - On State (It (RMS)) (Maximum) 80A
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Gate Trigger (Igt) (Maximum) 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1310A, 1370A
Current - Hold (Ih) (Maximum) 200mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package D-55 T-Module
Win Source Part Number 796124-VS-T50RIA120
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-T50RIA120 CAD Model

Description

This SCR is manufactured by Vishay Semiconductor Diodes Division.

  • Voltage Off State: 1200V
  • Current On State: 80A
  • Mounting: Chassis
  • RoHS Compliant: Yes
  • Lead-Free: Yes
