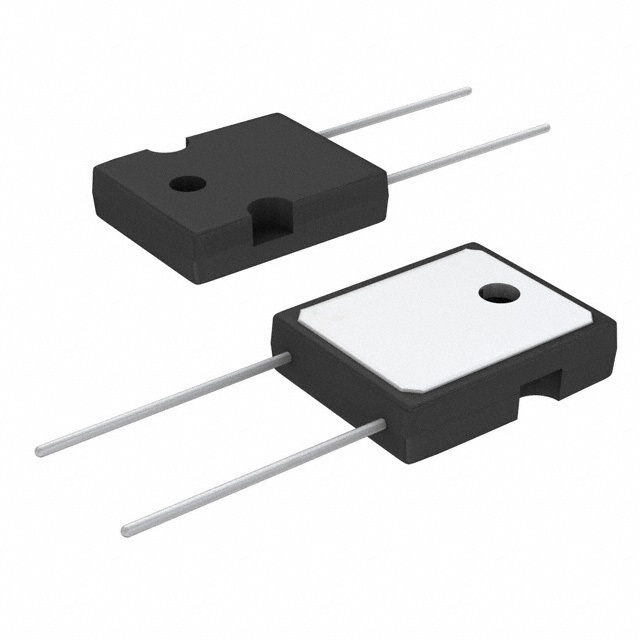

VS-E5PX3012L-N3

Part No VS-E5PX3012L-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 30A TO247AD
Datasheet
VS-E5PX3012L-N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series FRED Pt®
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 3.15 V @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 100 ns
Current - Reverse Leakage @ Vr 50 µA @ 1200 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247AD
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number E5PX3012
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366943-VS-E5PX3012L-N3
Ultra Librarian 3D Model Ultra Librarian VS-E5PX3012L-N3 CAD Model

Description

The 1366943-VS-E5PX3012L-N3 is a standard diode from Vishay General Semiconductor - Diodes Division.

  • FRED Pt® Series: Yes
  • Package: TO-247-2
  • Maximum Reverse Voltage: 1200V
  • Average Rectified Current: 30A
  • Forward Voltage: 3.15V @ 30A
  • Recovery Time: Less than 500ns
  • Reverse Leakage Current: 50μA @ 1200V
  • Operating Temperature Range: -55°C to 175°C
