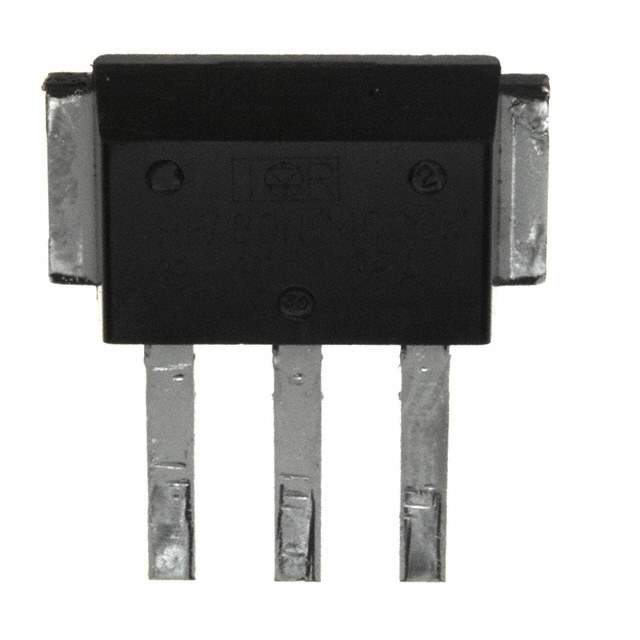

VS-85CNQ015ASMPBF Real Image
Same model may have multiple batches, images only for reference.

VS-85CNQ015ASMPBF

Part No VS-85CNQ015ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 15V 40A D618SM
Datasheet
VS-85CNQ015ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 360mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 20mA @ 15V
Operating Temperature - Junction -55°C to 125°C
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 139814-VS-85CNQ015ASMPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian VS-85CNQ015ASMPBF CAD Model

Description

The Vishay Schottky diode is a high-quality electronic component that is designed for use in a variety of applications.

  • Maximum DC Reverse Voltage: 15V
  • Mounting: Through Hole
  • Configuration: Single pair of common cathodes
  • Average Rectified Current: Up to 40A
  • Temperature Rating: -55°C to 125°C
