Same model may have multiple batches, images only for reference.

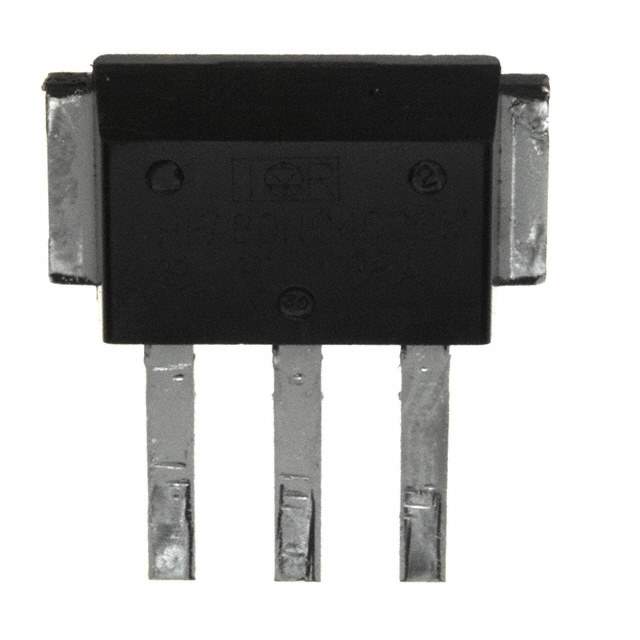

VS-81CNQ045ASMPBF Real Image
Same model may have multiple batches, images only for reference.

VS-81CNQ045ASMPBF

Part No VS-81CNQ045ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 45V 40A D618SM
Datasheet
VS-81CNQ045ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) @ If 600mV @ 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 40V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Package D-61-8-SM
Manufacturer Package D-61-8-SM
Win Source Part Number 766284-VS-81CNQ045ASMPBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-81CNQ045
Introduction Date June 17, 2010
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VS-81CNQ045ASMPBF CAD Model

Description

The Vishay VS-81CNQ045ASMPBF is a fast recovery Schottky diode.

  • Current Rating: 40A
  • Voltage Rating: 45V
  • Forward Voltage @ 40A: 600mV
  • Diode Configuration: 1 Pair Common Cathode
  • Package: D-61-8-SM
  • Reverse Leakage Current @ 40V: 5mA
  • Operating Temperature Range: -55°C to 175°C
  • Introduction Date: June 17, 2010
  • Estimated EOL Date: Obsolete
