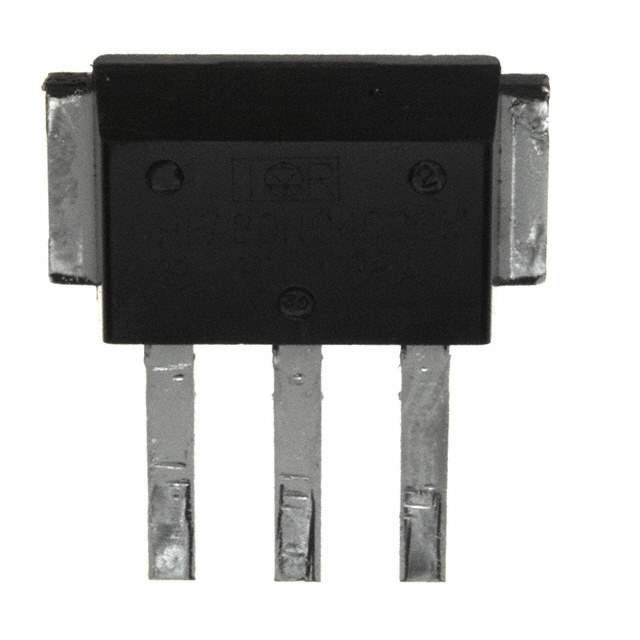

VS-80CNQ045ASMPBF Real Image
Same model may have multiple batches, images only for reference.

VS-80CNQ045ASMPBF

Part No VS-80CNQ045ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 35V 40A D618SM
Datasheet
VS-80CNQ045ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 35V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 520mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 35V
Operating Temperature - Junction -55°C to 150°C
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 139629-VS-80CNQ045ASMPBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian VS-80CNQ045ASMPBF CAD Model

Description

This electronic component is a Vishay Schottky diode.

  • Voltage - DC Reverse (Vr) (Max): 35V
  • Voltage - Forward (Vf) (Max) @ If: 520mV @ 40A
  • Current - Reverse Leakage @ Vr: 5mA @ 35V
  • Operating Temperature - Junction: -55°C to 150°C
  • Diode Configuration: 1 pair common cathode
  • Current - Average Rectified (Io) (per diode): 40A
  • Quantity per package: 400
