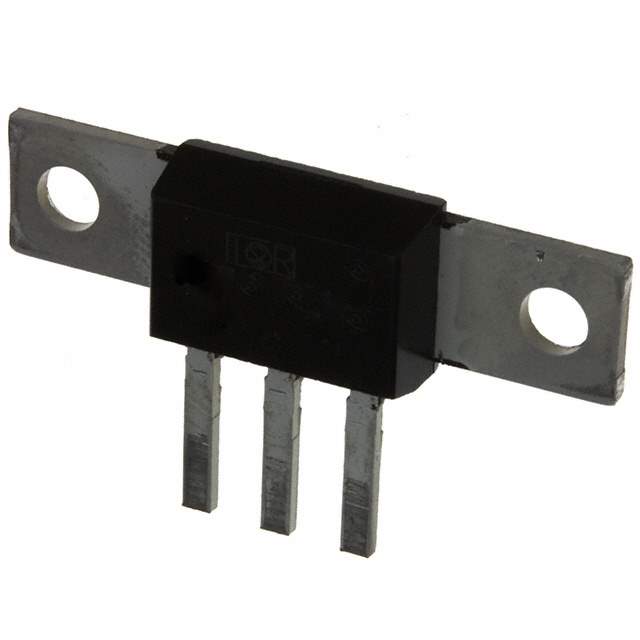

VS-80CNQ045APBF

Part No VS-80CNQ045APBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V D618
Datasheet
VS-80CNQ045APBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 520mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 45V
Operating Temperature - Junction -55°C to 150°C
Mounting Chassis Mount
Case / Package D-61-8
Win Source Part Number 124378-VS-80CNQ045APBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 200
Ultra Librarian 3D Model Ultra Librarian VS-80CNQ045APBF CAD Model

Description

The Vishay VS-80CNQ045APBF is a Schottky diode that is designed to deliver high efficiency and low power loss.

  • Maximum Reverse Voltage: 45V
  • Forward Voltage: 520mV @ 40A
  • Current Rating: 40A
  • Reverse Leakage Current: 5mA @ 45V
  • Mounting: Chassis mount
  • Package: D-61-8
  • Temperature Range: -55°C to 150°C
  • Packaging: Bulk
  • Supply: Limited
