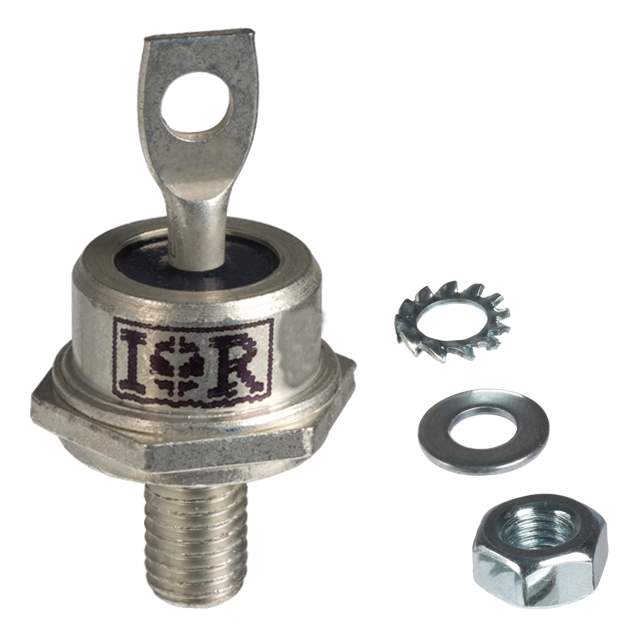

VS-70HFR20 Real Image
Same model may have multiple batches, images only for reference.

VS-70HFR20

Part No VS-70HFR20
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 70A DO203AB / Diode Standard, Reverse Polarity 200 V 70A Chassis, Stud Mount DO-203AB (DO-5)
Datasheet
VS-70HFR20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Max) @ If 1.35 V @ 220 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15 mA @ 200 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB (DO-5)
Operating Temperature - Junction -65°C ~ 180°C
Base Product Number 70HFR20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names VS-70HFR20-ND,*70HFR20,VS70HFR20,VS70HFR20-ND,70HFR20
Standard Package 100
Win Source Part Number 1062730-VS-70HFR20
Ultra Librarian 3D Model Ultra Librarian VS-70HFR20 CAD Model

Description

The VS-70HFR20 is a standard recovery diode that is designed for use in rectifiers.

  • Maximum DC Reverse Voltage: 200V
  • Average Rectified Current: 70A
  • Diode Type: Standard with reverse polarity
  • Forward Voltage: 1.35V @ 220A
  • Current Leakage @ Maximum Reverse Voltage: 15mA
  • Mounting: Chassis or Stud
  • Package: DO-203AB or DO-5
  • Supplied: Bulk
  • Standard Package: 100 units
  • Alternative To: VS-70HF40, VS-70HF20, VS-70HF10, S3BB-13-F, S3MB-13-F, RS3M-13-FVS70HFR20
  • Junction Temperature Range: -65°C to 180°C
  • ECCN: EAR99
  • REACH: Unaffected
