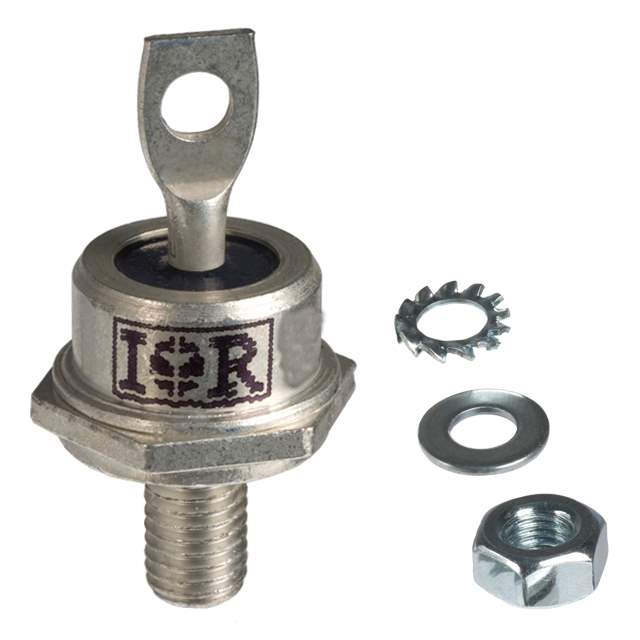

VS-70HFL100S05 Real Image
Same model may have multiple batches, images only for reference.

VS-70HFL100S05

Part No VS-70HFL100S05
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 70A DO203AB / Diode Standard 1000 V 70A Chassis, Stud Mount DO-203AB (DO-5)
Datasheet
VS-70HFL100S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Max) @ If 1.85 V @ 219.8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 500 ns
Current - Reverse Leakage @ Vr 100 µA @ 1000 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB (DO-5)
Operating Temperature - Junction -40°C ~ 125°C
Base Product Number 70HFL100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names VS70HFL100S05-ND,*70HFL100S05,70HFL100S05,VS70HFL100S05,VS-70HFL100S05-ND
Standard Package 100
Win Source Part Number 1039922-VS-70HFL100S05
Ultra Librarian 3D Model Ultra Librarian VS-70HFL100S05 CAD Model

Description

The 1039922-VS-70HFL100S05 is a fast recovery diode that belongs to the Discrete Semiconductor Products category.

  • Category: Discrete Semiconductor Products
  • Current: 70A
  • Voltage: 1000V
  • Diode Type: Standard
  • Reverse Recovery Time: 500ns
  • Package: DO-203AB, DO-5, Stud
  • Mounting Type: Chassis or stud
  • Operating Temperature: -40°C to 125°C
  • Supplier: Vishay General Semiconductor - Diodes Division
