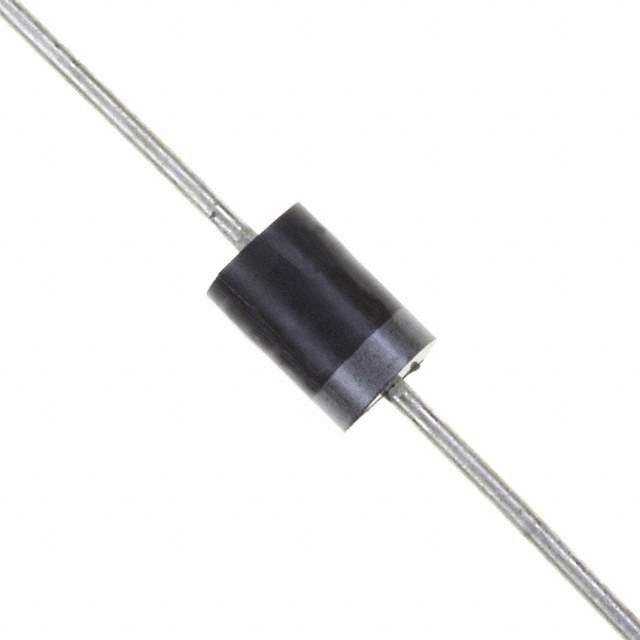

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 660mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 550μA @ 80V
Mounting Through Hole
Case / Package DO-204AR
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1005937-VS-50SQ080
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-50SQ080 CAD Model

Description

The Vishay VS-50SQ080 is a Schottky diode manufactured by Vishay.

  • Type: Schottky Diode
  • Manufacturer: Vishay
  • Category: Discrete Semiconductor Product
  • Status: Obsolete (EOL)
  • Mounting: Through-hole
  • Maximum Voltage: 80V
  • Average Rectified Current: 5A
  • Forward Voltage: 660mV @ 5A
  • Reverse Leakage Current: 550μA @ 80V
