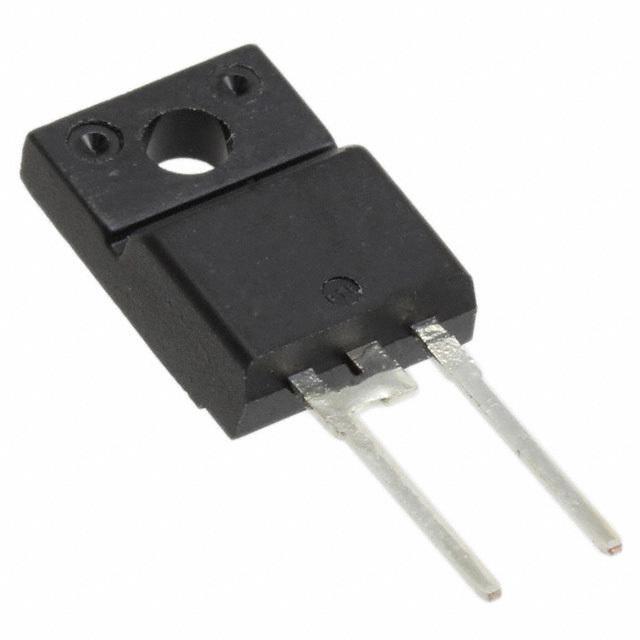

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 15A
Voltage - Forward (Vf) (Max) @ If 2.2V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Through Hole
Case / Package TO-220-2 Full Pack
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 005248-VS-15ETH06FPPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 50
Family Name VS-15ETH06FP
Introduction Date March 27, 2007
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VS-15ETH06FPPBF CAD Model

Description

The Vishay 005248-VS-15ETH06FPPBF is an active, through-hole mounted diode with a standard diode type and a voltage - DC reverse (Vr) (max) of 600V.

  • Mounting: through-hole
  • Voltage - DC Reverse (Vr) (max): 600V
  • Current - Average Rectified (Io): 15A
  • Voltage - Forward (Vf) (max) @ If: 2.2V @ 15A
  • Reverse Recovery Time (trr): 35ns
  • Current - Reverse Leakage @ Vr: 50μA @ 600V
  • Capacitance @ Vr, F: -
  • Category: Discrete Semiconductor Products
  • Speed (frequency): fast recovery = 200mA (Io)
  • Alternative parts: STTH15R06FP, RFUH20TJ6SGC9, RFN20TF6S, and RFUH20TF6S
  • Introduction date: March 27, 2007
  • Estimated EOL date: obsolete/end of life
  • ECCN: EAR99
  • Halogen-free: compliant
  • Supply and demand status: sufficient
  • Package contains: 50 diodes
