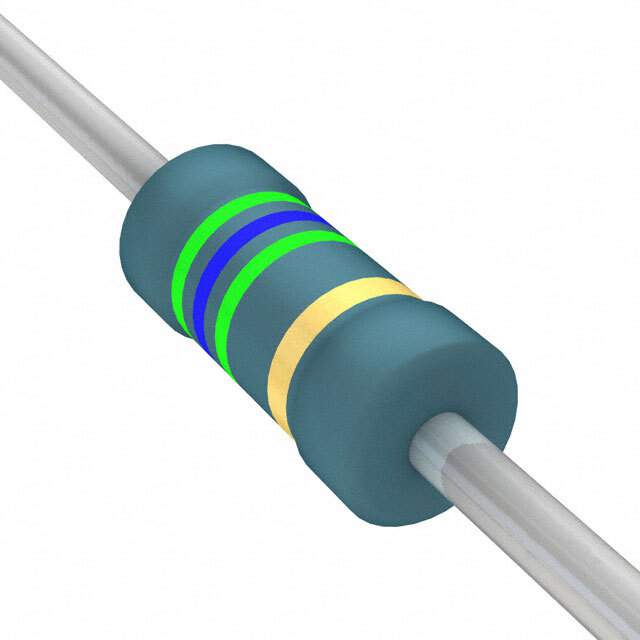

VR25000005604JA100 Real Image
Same model may have multiple batches, images only for reference.

VR25000005604JA100

Part No VR25000005604JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 5.6M OHM 5% 1/4W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay BC Components
Packaging Tape & Box (TB)
Resistance 5.6 MOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package Axial
Supplier Device Package Axial
Dimension 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Number of Terminations 2
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804164-VR25000005604JA100
Ultra Librarian 3D Model Ultra Librarian VR25000005604JA100 CAD Model

Description

The Vishay BC Components VR25000005604JA100 is a metal film resistor with a resistance of 5.6 MOhms and a power of 0.25W, 1/4W.

  • Resistance: 5.6 MOhms
  • Power: 0.25W, 1/4W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Pulse Withstanding: Yes
  • Automotive AEC-Q200 Compliant: Yes
  • Supplier Device Package: Axial
  • Manufacturer Package: Axial
  • Dimension: 0.098" Dia x 0.256" L (2.50mm x 6.50mm)
  • Operating Temperature Range: -55°C to 155°C
  • Supply and Demand Status: Balanced
  • Package Quantity: 1,000
