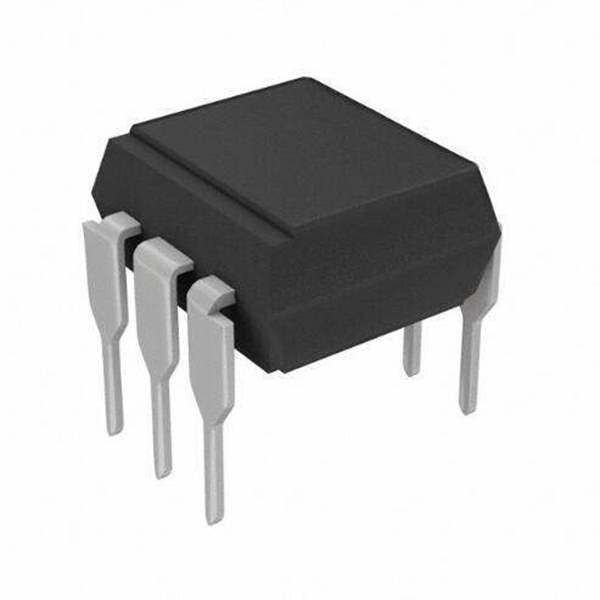

VOT8125AD Vishay Semiconductor Opto Division
Same model may have multiple batches, images only for reference.

VOT8125AD

Part No VOT8125AD
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOCOUPLER 800V DIP-6
Datasheet
VOT8125AD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Vishay Semiconductor Opto Division
Category Isolators Optoisolators Triac, SCR Output Optoisolators
Packaging  Tube
Part Status Active
Output Type Triac
Voltage - Isolation 5000Vrms
Static dV/dt (Min) 1kV/µs
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 400µA (Typ)
Current - DC Forward (If) (Max) 50 mA
Operating Temperature -40°C ~ 110°C
Win Source Part Number WS1304268-VOT8125AD
Ultra Librarian 3D Model Ultra Librarian VOT8125AD CAD Model

Description

The VOT8125A consists of a GaAs IRLED optically coupled to a photosensitive TRIAC packaged in a DIP-6 package featuring a high isolation distance on output. The VOT8125A isolates low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays.
