Same model may have multiple batches, images only for reference.

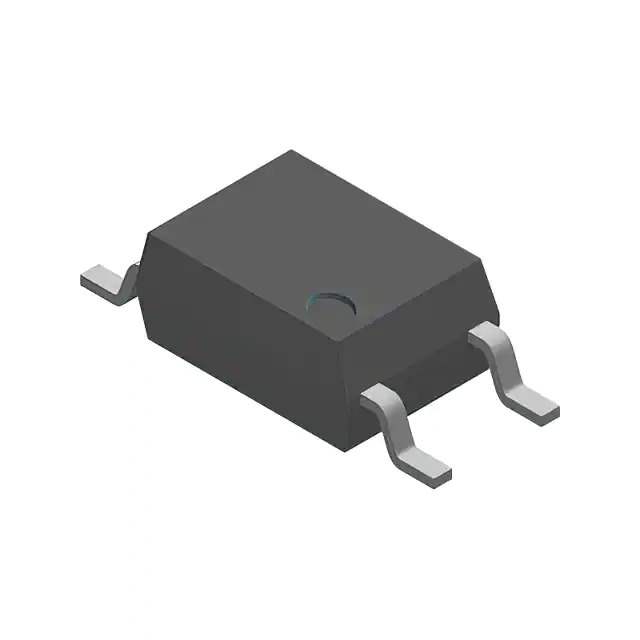

VOM617A-6X001T Real Image
Same model may have multiple batches, images only for reference.

VOM617A-6X001T

Part No VOM617A-6X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER, PHOTOTRANSISTOR OUT / Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Datasheet
VOM617A-6X001T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 250% @ 5mA
Current Transfer Ratio (Max) 500% @ 5mA
Turn On / Turn Off Time (Typ) 6µs, 4µs
Rise / Fall Time (Typ) 3µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.1V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1104011-VOM617A-6X001T
Ultra Librarian 3D Model Ultra Librarian VOM617A-6X001T CAD Model

Description

The 1104011-VOM617A-6X001T is an optoisolator with a photovoltaic output and transistor input.

  • Input Application: DC
  • Current - Forward (If) (Max): 60 mA
  • Forward Voltage (Vf) (Typ): 1.1V
  • Rise/Fall Time: 3μs and 3μs respectively
  • Current Output/Channel: 50mA
  • Voltage Isolation: 3750Vrms
  • Current Transfer Ratio (Min): 250% @ 5mA
  • Current Transfer Ratio (Max): 500% @ 5mA
  • Maximum Output Voltage: 80V
  • Vce Saturation: 400mV
  • Turn On/Off Time: 6μs and 4μs respectively
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, Gull Wing
  • Operating Temperature Range: -55°C to 110°C
  • Manufacturer: Vishay
  • Product Status: Active
  • ECCN: EAR99
