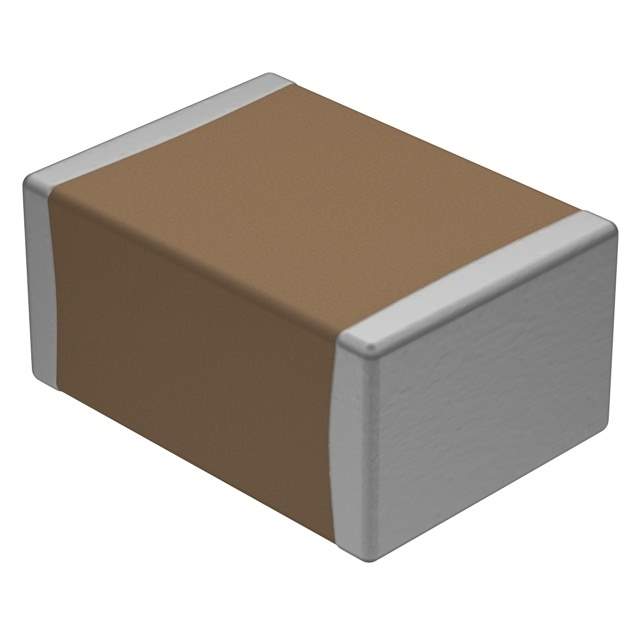

VJ1812Y223MXEAT Real Image
Same model may have multiple batches, images only for reference.

VJ1812Y223MXEAT

Part No VJ1812Y223MXEAT
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 500V X7R 1812
Datasheet
VJ1812Y223MXEAT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 0.022μF
Tolerance ±20%
Voltage Rating 500V
Temperature Coefficient X7R
Temperature Range - Operating -55°C to 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.086" (2.18mm)
Win Source Part Number 057295-VJ1812Y223MXEAT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VJ1812Y223MXEAT CAD Model

Description

The Vishay 057295-VJ1812Y223MXEAT is a surface mount MLCC capacitor with a capacitance of 0.022μF and a voltage rating of 500V.

  • Capacitance: 0.022μF
  • Voltage Rating: 500V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Thickness: 0.086" (2.18mm)
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Application: General purpose
  • Temperature Range: -55°C to 125°C
  • Supply and Demand Status: Limited
