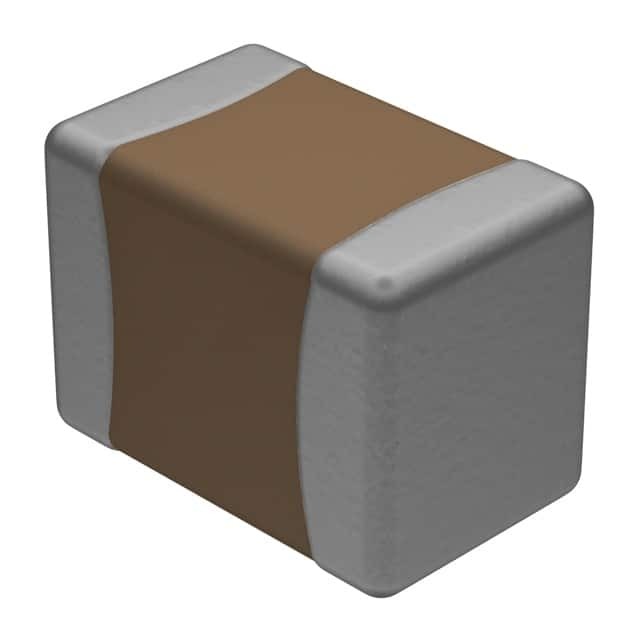

The VJ0805Y222KXACW1BC is a multilayer ceramic capacitor (MLCC) manufactured by Vishay. This capacitor is designed for general-purpose applications in electronic circuits, providing stable capacitance and reliable performance in a compact size.

Applications:

• Bypass Capacitors: Filtering noise on power supply lines in electronic devices.
• Decoupling Capacitors: Stabilizing voltage levels and reducing noise in digital circuits.
• Timing Circuits: Used in oscillator and timing circuits to control frequency.
• Filtering Applications: Removing unwanted frequencies from electronic signals.
• General Purpose Applications: Used in a wide range of electronic circuits for various functions.

Features:

• Small Size (0805): Compact size for high-density circuit board designs.
• High Capacitance Value (2.2 nF): Provides a stable capacitance for general-purpose applications.
• X7R Dielectric: Offers stable performance over a wide temperature range.
• Surface Mount Technology (SMT): Facilitates automated assembly and reduces board space.
• RoHS Compliant: Meets environmental regulations.

Benefits:

• Stable Performance: X7R dielectric provides stable capacitance over temperature and voltage.
• Reduced Noise: Effective at filtering noise and stabilizing voltage levels.
• Compact Design: Small size allows for high-density circuit board layouts.
• Easy Assembly: Surface mount design facilitates automated assembly processes.
• Reliable Operation: Robust construction ensures reliable performance in various environments.

Additional Details:

The VJ0805Y222KXACW1BC has a capacitance of 2.2 nF with a tolerance of ±10%. It is rated for a voltage of 10V. The operating temperature range is typically -55°C to +125°C. Specific electrical characteristics, such as dissipation factor (DF) and insulation resistance (IR), are detailed in the product datasheet. The capacitor is constructed with ceramic materials and metal electrodes for reliable performance and long lifespan.
