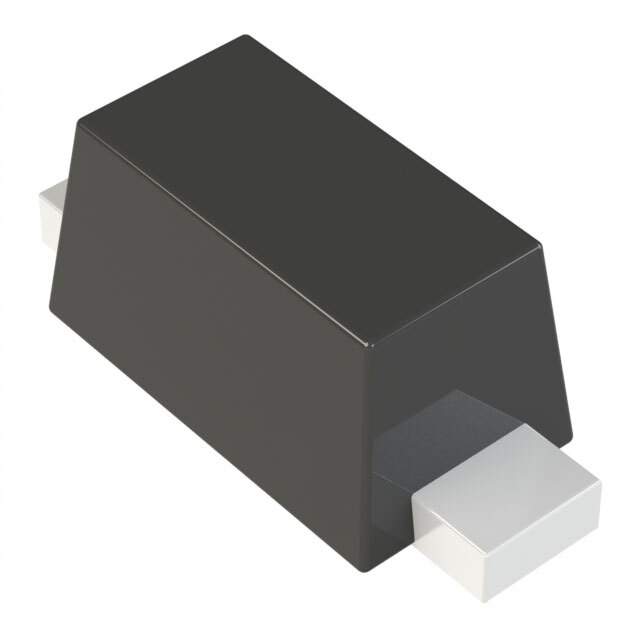

VESD12-02V-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD12-02V-GS08

Part No VESD12-02V-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 12VWM 25VC SOD523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 14V
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 2A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 30pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1117004-VESD12-02V-GS08
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VESD12-02V-GS08 CAD Model

Description

The Vishay VESD12-02V-GS08 is a zener diode with a stand-off voltage (Vwm) of 12V and a minimum breakdown voltage of 14V.

  • Maximum Clamping Voltage: 25V
  • Peak Pulse Current (Ippm): 2A (8/20μs)
  • Channel: Unidirectional
  • Capacitance: 30pF @ 1MHz
  • Commonly Used: Circuit protection
  • Status: Obsolete (EOL)
  • Packaging: SOD-523
  • Operating Temperature: -40°C to 125°C (TJ)
