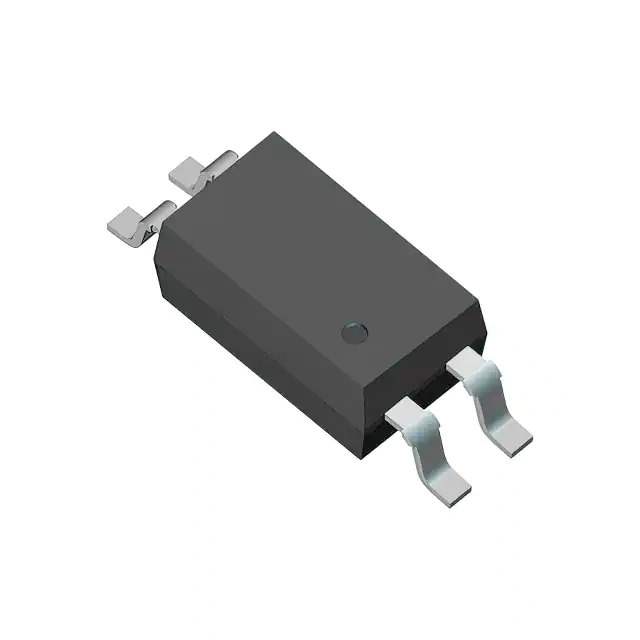

VOS615A-1X001T Real Image
Same model may have multiple batches, images only for reference.

VOS615A-1X001T

Part No VOS615A-1X001T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOCOUPLER, PHOTOTRANSISTOR OUT
Datasheet
VOS615A-1X001T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Series VOS615A
Package Tape & Reel
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 40% @ 10mA
Current Transfer Ratio (Max) 80% @ 10mA
Turn On / Turn Off Time (Typ) 5µs, 5µs
Rise / Fall Time (Typ) 3µs, 4µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package 4-SSOP
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1104017-VOS615A-1X001T
Ultra Librarian 3D Model Ultra Librarian VOS615A-1X001T CAD Model

Description

The VOS615A-1X001T is an optoisolator from Vishay's VOS615A series.

  • Output: Surface Mount Transistor-Based Photovoltaic
  • Maximum Forward Current: 50 mA
  • Forward Voltage: 1.2V
  • Rise/Fall Time: 3μs/4μs
  • Output Current: 50mA
  • Isolation Voltage: 3750Vrms
  • Minimum Current Transfer Ratio: 40% @ 10mA
  • Maximum Output Voltage: 80V
  • Vce Saturation: 400mV
  • Turn-On/Turn-Off Time: 5μs/5μs
  • Package: 4-SOIC (0.173", 4.40mm Width)
