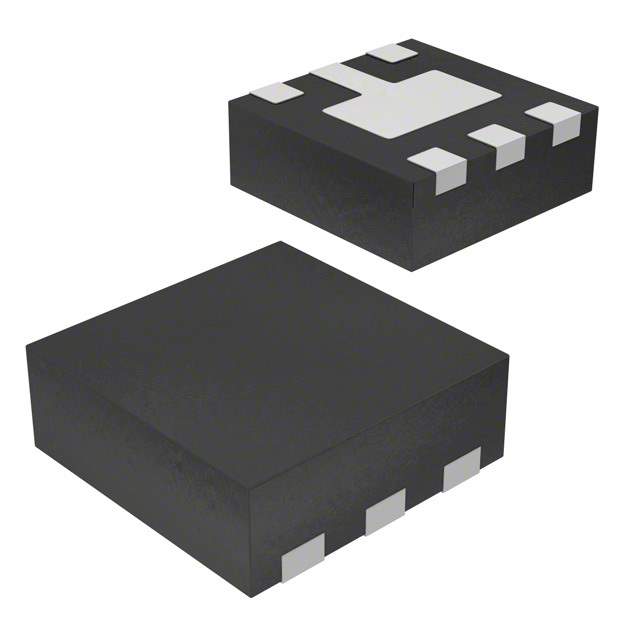

The VESD05A5A-HS3 is a Transient Voltage Suppressor (TVS) diode designed and manufactured by Vishay. It provides robust protection against electrostatic discharge (ESD) and other transient voltage events. This device is particularly well-suited for safeguarding sensitive electronic components in high-speed data lines and interfaces, offering a combination of high surge capability and low capacitance.

Applications:

• High-Speed Data Lines: Protection for USB 3.0/3.1, HDMI, and Ethernet interfaces.
• Antenna Protection: Protecting RF circuits from ESD strikes.
• Automotive Electronics: Safeguarding sensitive automotive control systems.
• Medical Equipment: Ensuring reliable operation of critical medical devices.
• Industrial Control Systems: Protecting against voltage transients in industrial environments.

Features:

• Low Capacitance: Minimizes signal degradation in high-speed applications.
• High Surge Capability: Withstands high transient currents without failure.
• Fast Response Time: Quickly clamps transient voltages to protect downstream circuitry.
• Compact Package: Allows for easy integration into space-constrained designs.
• AEC-Q101 Qualified: Suitable for automotive applications with stringent reliability requirements.

Benefits:

• Enhanced System Reliability: Prevents damage from ESD and transient voltage events, improving overall system reliability.
• Improved Signal Integrity: Low capacitance ensures minimal impact on high-speed data signals.
• Reduced Downtime: Minimizes system downtime due to transient voltage-related failures.
• Extended Product Lifespan: Protects sensitive components, prolonging the lifespan of electronic devices.
• Compliance with Industry Standards: Meets industry standards for ESD and transient voltage protection.

Additional Details:

The VESD05A5A-HS3 features a low clamping voltage to ensure that the protected circuitry is not exposed to excessive voltage during a transient event. Its small footprint and high surge capability make it an ideal choice for protecting a wide range of electronic devices from the damaging effects of ESD and other voltage transients. The HS3 designation indicates that it is optimized for high-speed signal protection.
