The NXP S912ZVMC64F2WKH is a highly integrated microcontroller designed for automotive and industrial applications that require robust operation and a wide range of features. This microcontroller is part of the S12 MagniV portfolio, which combines the S12 core with high voltage analog components to create a single-chip solution. It is particularly suitable for applications such as motor control, engine management, and body electronics.

Key Features

• 16-bit S12 CPU Core: The S12 core operates at up to 25 MHz and is optimized for low-power consumption and high performance in embedded applications.
• Memory: It comes with 64 KB of on-chip flash memory, 4 KB of RAM, and 2 KB of EEPROM, which are essential for storing code and data in a reliable and efficient manner.
• Integrated Analog Modules: The microcontroller includes various analog modules such as an Analog-to-Digital Converter (ADC), a Timer-PWM module, and multiple serial communication interfaces, providing excellent integration for control applications.
• Robust I/O Capabilities: With up to 47 General Purpose Input/Output (GPIO) pins, the S912ZVMC64F2WKH can handle multiple inputs and outputs, making it highly versatile for interfacing with other components in a system.
• Temperature Range: The device is designed to operate within an extended temperature range, making it suitable for harsh environments typically found in automotive applications.

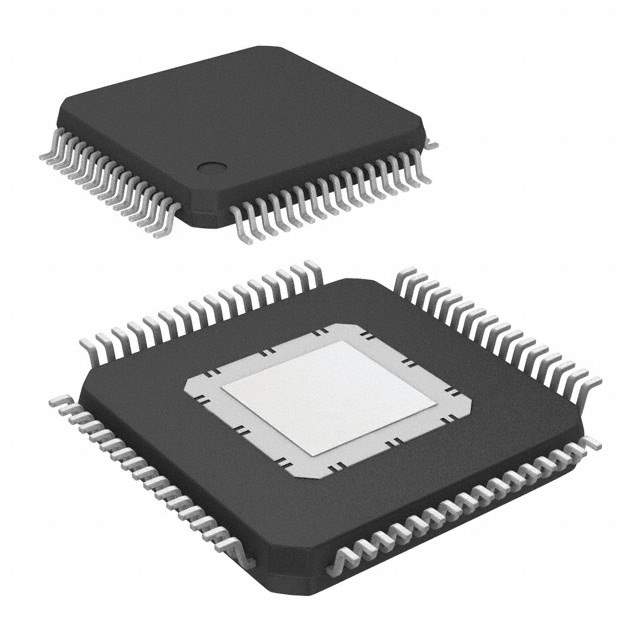

• Package: The microcontroller is available in a 64-pin QFP package, which is ideal for space-constrained applications.

Applications

The S912ZVMC64F2WKH is engineered to meet the demands of a variety of applications. It is particularly well-suited for:

• Automotive engine control units
• Electric power steering systems
• Anti-lock braking systems
• Body control modules
• Industrial control systems
• Smart actuators and sensors

With its combination of a powerful 16-bit CPU core, extensive memory, and integrated analog modules, the NXP S912ZVMC64F2WKH microcontroller provides a compact, efficient, and cost-effective solution for complex control applications.
