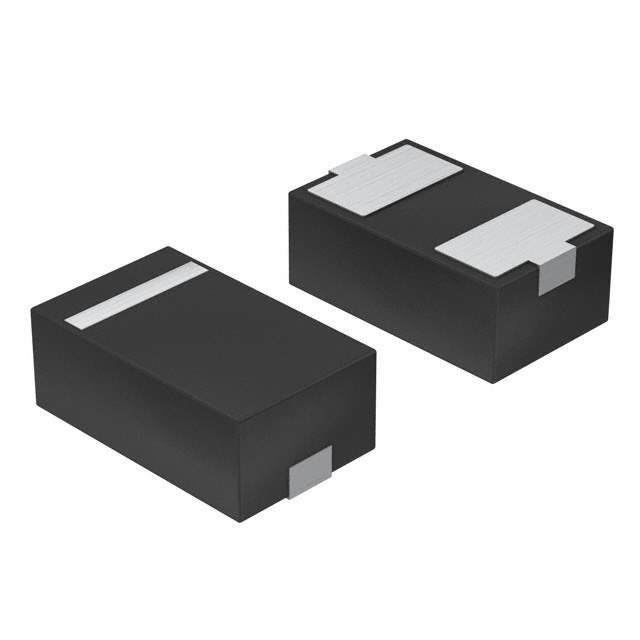

VESD03A1C-HD1-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD03A1C-HD1-GS08

Part No VESD03A1C-HD1-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 10VC 2LLP
Datasheet
VESD03A1C-HD1-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V (Max)
Minimum Breakdown Voltage 5V
Max Clamping Voltage 10V
Peak Pulse Current(Ippm) 9.5A (8/20μs)
Power Dissipation - Pd 95W
Applications General Purpose
Capacitance @ Frequency 78pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1006-2L
Win Source Part Number 1116993-VESD03A1C-HD1-GS08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VESD03A1C-HD1-GS08 CAD Model

Description

The electronic component with Id 426792 is a Zener type product manufactured by Vishay.

  • Type: Zener
  • Application: General-Purpose
  • Mounting: SMD (SMT)
  • Channel: Unidirectional
  • Capacitance: 78pF @ 1MHz
  • Category: Circuit Protection
  • Status: Active
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • STAND-OFF Voltage: 3.3V (Max)
  • Minimum Breakdown Voltage: 5V
  • Maximum Clamping Voltage: 10V
  • Peak Pulse Current(Ippm): 9.5A (8/20μs)
  • Power Dissipation - Pd: 95W
  • Supply and Demand Status: Sufficient
