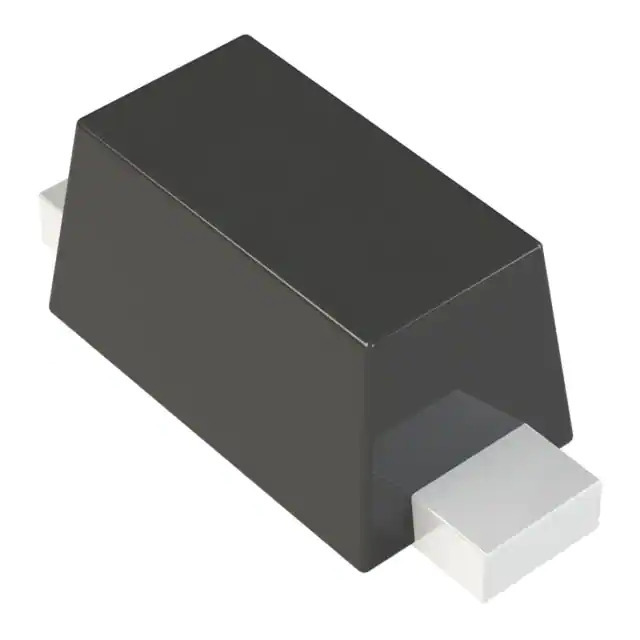

VESD01C1-02VHG3-08

Name: VESD01C1-02VHG3-08
Brand: Vishay
SKU: 1361987
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VESD01C1-02VHG3-08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 1VWM 6.9VC SOD523 / 6.9V Clamp 14.6A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet	VESD01C1-02VHG3-08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Vishay General Semiconductor - Diodes Division
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	1V (Max)
Voltage - Breakdown (Min)	2.5V
Voltage - Clamping (Max) @ Ipp	6.9V
Current - Peak Pulse (10/1000µs)	14.6A (8/20µs)
Power - Peak Pulse	100W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	192pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Base Product Number	VESD01
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1361987-VESD01C1-02VHG3-08
Ultra Librarian 3D Model	Ultra Librarian VESD01C1-02VHG3-08 CAD Model

Alternative Products

Description

The VESD01C1-02VHG3-08 is a TVS diode from Vishay General Semiconductor - Diodes Division.

Temperature Range: -55°C to 150°C
Voltage Breakdown: 2.5V
Clamping Voltage: 6.9V @ 14.6A
Power Rating: 100W
Mounting Type: Surface Mount
Package: SC-79, SOD-523
Automotive: AEC-Q101
REACH: Unaffected
ECCN: EAR99
