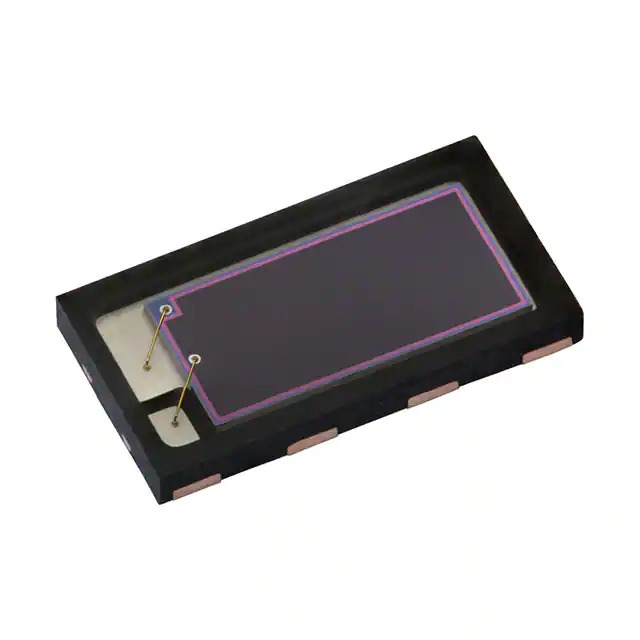

VEMD8081 Vishay
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Wavelength 840nm
Color - Enhanced -
Spectral Range 350nm ~ 1100nm
Diode Type PIN
Responsivity @ nm -
Response Time 110ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 500pA
Active Area 5.4mm²
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Base Product Number VEMD8081
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1372035-VEMD8081
Ultra Librarian 3D Model Ultra Librarian VEMD8081 CAD Model

Description

The VEMD8081 is a photodiode sensor manufactured by Vishay Semiconductor Opto Division.

  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD, No Lead
  • Operating Temperature: -40°C ~ 85°C
  • Voltage - DC Reverse (Vr) (Max): 20V
  • Diode Type: PIN
  • Viewing Angle: 130°
  • Response Time: 110ns
  • Wavelength: 350nm ~ 1100nm
  • Wavelength - Peak: 840nm
  • Current - Dark (Typ): 500pA
  • Active Area: 5.4mm²
