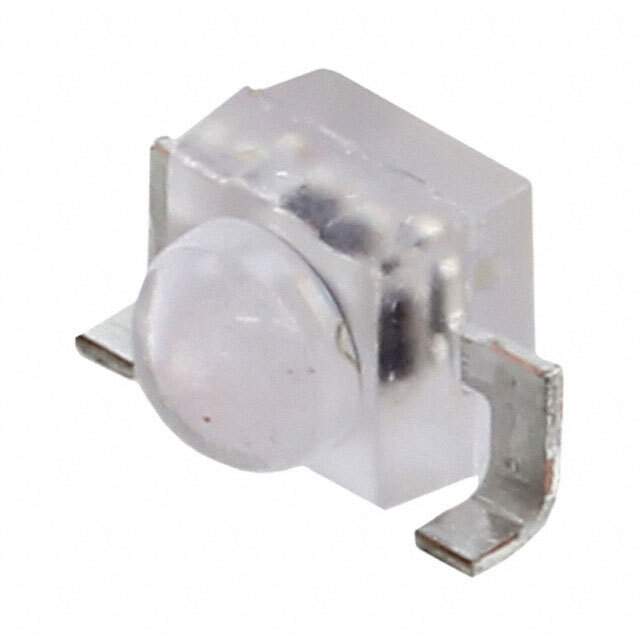

VEMD2523SLX01 Real Image
Same model may have multiple batches, images only for reference.

VEMD2523SLX01

Part No VEMD2523SLX01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 900NM 2SMD / Silicon PIN Photodiode
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Wavelength 900nm
Spectral Range 350nm ~ 1120nm
Diode Type PIN
Response Time 100ns
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 70°
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD
Manufacturer Package 2-SMD
Manufacturer Pack Quantity 3,000
MSL Level 2A (4 Weeks)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813824-VEMD2523SLX01
Ultra Librarian 3D Model Ultra Librarian VEMD2523SLX01 CAD Model

Description

The VEMD2523SLX01 is a PIN diode type with a spectral range of 350nm ~ 1120nm.

  • Response Time: 100ns
  • Viewing Angle: 70°
  • Dark Current: 1nA
  • Active Area: 0.23mm²
  • Package/Case: 2-SMD
  • Reverse Voltage (Vr): 60V
  • Manufacturer: Vishay Semiconductor Opto Division
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 2A (4 Weeks)
