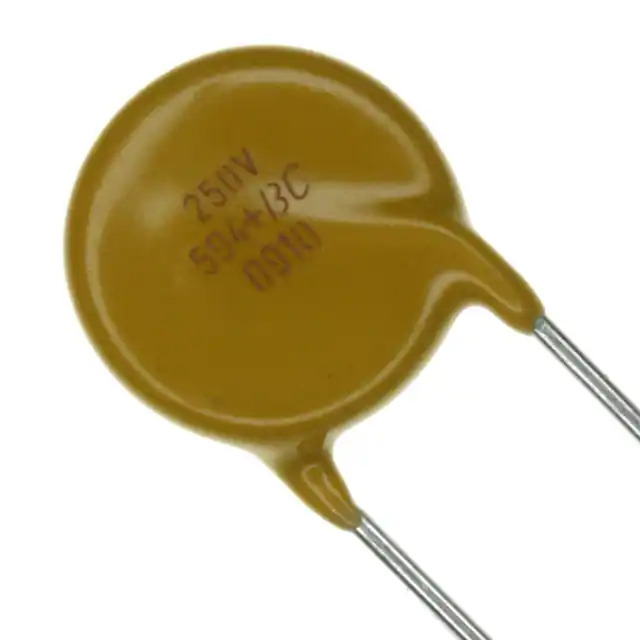

Same model may have multiple batches, images only for reference.
VDRS10P275BSE Vishay
Same model may have multiple batches, images only for reference.

VDRS10P275BSE

Part No VDRS10P275BSE
Manufacturer Vishay
Catalog TVS - Varistors, MOVs
Description VARISTOR 430V 2.5KA DISC 12MM / 430 V 2.5 kA Varistor 1 Circuit Through Hole Disc 12mm
Datasheet
VDRS10P275BSE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr Vishay Beyschlag/Draloric/BC Components
Series VDRS
Package Bulk
Product Status Active
Maximum AC Volts 275 V
Maximum DC Volts 350 V
Varistor Voltage (Min) 387 V
Varistor Voltage (Typ) 430 V
Varistor Voltage (Max) 473 V
Current - Surge 2.5 kA
Energy 63J
Number of Circuits 1
Capacitance @ Frequency 270 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 12mm
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361174-VDRS10P275BSE
Ultra Librarian 3D Model Ultra Librarian VDRS10P275BSE CAD Model

Description

The 1361174-VDRS10P275BSE is a varistor, MOV (metal-oxide varistor) from Vishay Beyschlag/Draloric/BC Components.

  • Type: Disc
  • Diameter: 12mm
  • Operating Temperature: -40°C to 85°C
  • Capacitance: 270 pF @ 1 kHz
  • Maximum AC Voltage: 275 V
  • Maximum DC Voltage: 350 V
  • Varistor Voltage: 387 V to 473 V
  • Surge Current: 2.5 kA
  • Energy Rating: 63J
  • RoHS: Compliant
  • REACH: Unaffected
  • Status: Active
