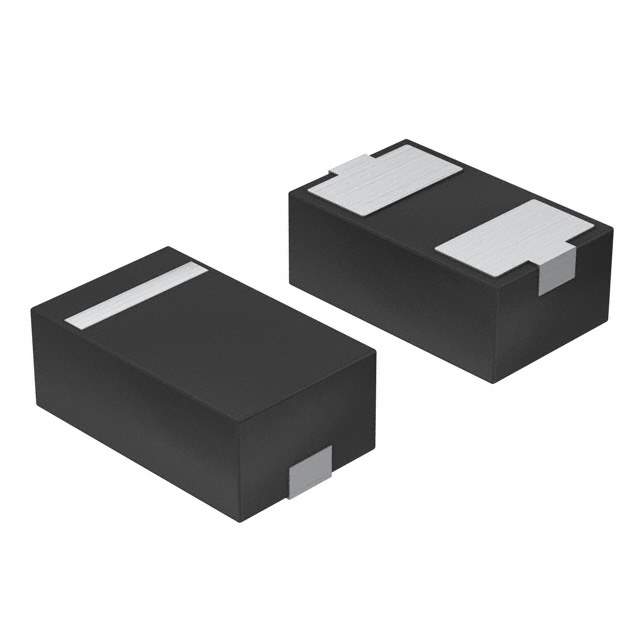

VCUT07B1-HD1-G4-08 Real Image
Same model may have multiple batches, images only for reference.

VCUT07B1-HD1-G4-08

Part No VCUT07B1-HD1-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 7VWM 15VC 2LLP
Datasheet
VCUT07B1-HD1-G4-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 7V (Max)
Minimum Breakdown Voltage 7.3V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Dissipation - Pd 60W
Applications General Purpose
Capacitance @ Frequency 14pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package LLP1006-2L
Win Source Part Number 1116972-VCUT07B1-HD1-G4-08
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian VCUT07B1-HD1-G4-08 CAD Model

Description

The VCUT07B1-HD1-G4-08 is a Zener diode manufactured by Vishay.

  • Packaging: Reel
  • Mounting: SMD (SMT) technology
  • Application: General-purpose
  • Capacitance: 14pF @ 1MHz
  • Supply and Demand Status: Sufficient
  • Peak Pulse Current: 4A (8/20μs)
  • Power Dissipation: 60W
