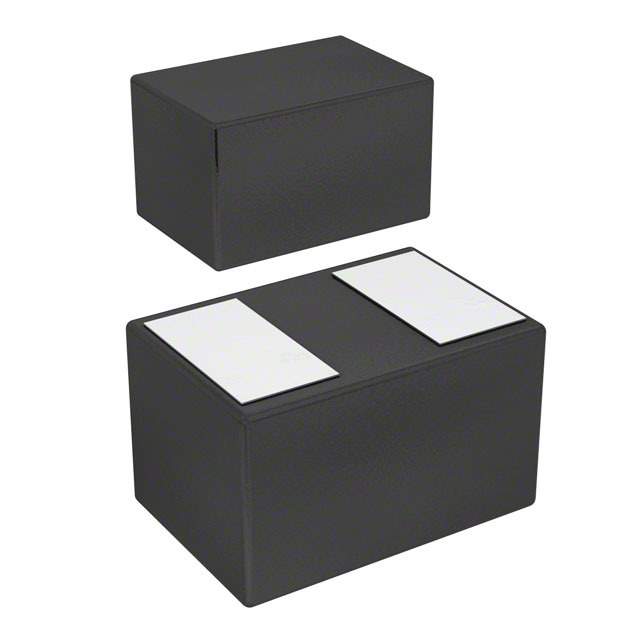

VCUT05D1-SD0-G4-08 Real Image1 VCUT05D1-SD0-G4-08 Real Image2
Same model may have multiple batches, images only for reference.
VCUT05D1-SD0-G4-08 Real Image1 VCUT05D1-SD0-G4-08 Real Image2
VCUT05D1-SD0-G4-08 Real Image1 VCUT05D1-SD0-G4-08 Real Image2
Same model may have multiple batches, images only for reference.

VCUT05D1-SD0-G4-08

Part No VCUT05D1-SD0-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Bi-Dir 5.5V 2-Pin SMD T/R / TVS DIODE 5.5VWM 13VC 0201
Datasheet
VCUT05D1-SD0-G4-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 13V
Peak Pulse Current(Ippm) 6A (8/20μs)
Power Dissipation - Pd 78W
Applications General Purpose
Capacitance @ Frequency 13pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package CLP0603
Win Source Part Number 036239-VCUT05D1-SD0-G4-08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial
Family Name VCUT05D1-SD0
Introduction Date September 01, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VCUT05D1-SD0-G4-08 CAD Model

Description

The Vishay 036239-VCUT05D1-SD0-G4-08 is a Zener type electronic component.

  • GPTDescription: It has a Capacitance @ Frequency of 13pF @ 1MHz and a STAND-OFF Voltage (Vwm) of 5.5V (Max).
  • GPTDescription: This product comes in a CLP0603 package and is available in reel - TR packaging.
  • GPTDescription: It has a Minimum Breakdown Voltage of 6.5V, Max Clamping Voltage of 13V, and Peak Pulse Current(Ippm) of 6A (8/20μs).
  • GPTDescription: The product has a Power Dissipation - Pd of 78W and is obsolete (EOL).
  • GPTDescription: It has a high popularity and sufficient supply.
  • GPTDescription: The alternative parts (Cross-Reference) are ESD206B102ELSE6327XTSA1, ESDALC5-1BF4, ESD205B102ELSE6327XTSA1, and DF2B6M4SL.
  • GPTDescription: The introduction date is September 01, 2011 and the estimated EOL date is obsolete/end of life.
  • GPTDescription: The product is commonly used in industrial applications.
