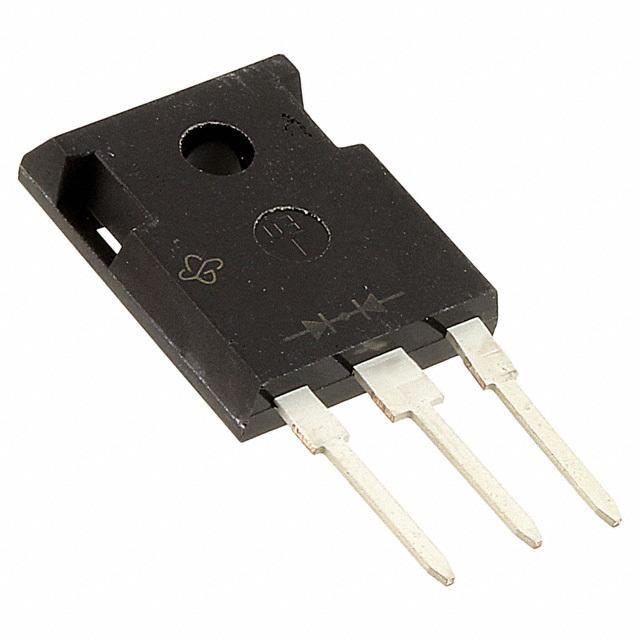

V30100PW-M3/4W Vishay
Same model may have multiple batches, images only for reference.

V30100PW-M3/4W

Part No V30100PW-M3/4W
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO3PW / Diode Schottky 100V 30A 3-Pin(3+Tab) TO-3PW Tube
Datasheet
V30100PW-M3/4W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series TMBS
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) @ If 910mV @ 15A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 450μA @ 100V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PW
Win Source Part Number 798982-V30100PW-M3/4W
Popularity Medium
Supply and Demand Status Limited
Family Name V30100PW
Introduction Date April 28, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian V30100PW-M3/4W CAD Model

Description

The Vishay V30100PW-M3/4W is a Schottky diode from Vishay Semiconductor Diodes Division.

  • Current - Average Rectified (Io) (per Diode): 15A
  • Voltage - Forward (Vf) (maximum) @ If: 910mV @ 15A
  • Voltage - DC Reverse (Vr) (maximum): 100V
  • Reverse Recovery Time (trr): 42ns
  • Current - Reverse Leakage @ Vr: 3μA @ 600V
  • Package: TO-3P-3 full pack
  • Supply and Demand Status: Limited
