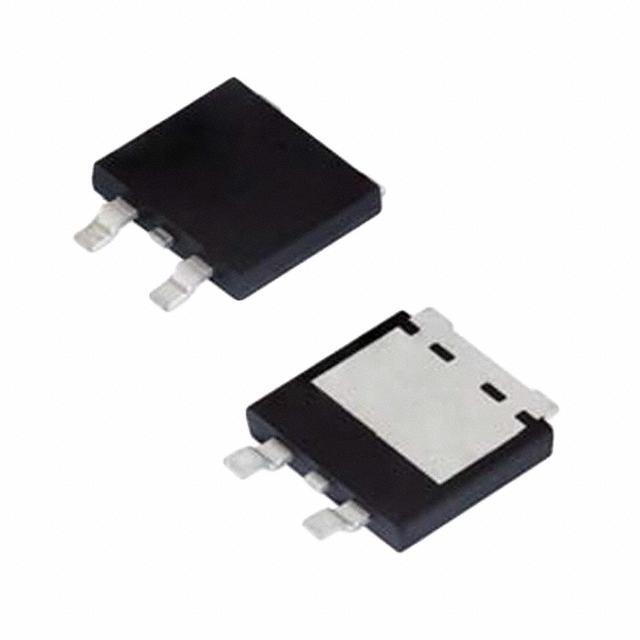

V20DM120C-M3/I Vishay
Same model may have multiple batches, images only for reference.

V20DM120C-M3/I

Part No V20DM120C-M3/I
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 120V SMPD / Diode Schottky 120V 20A 3-Pin(3+Tab) SMPD T/R
Datasheet
V20DM120C-M3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series eSMP, TMBS
Packaging Reel package
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 120V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Maximum) @ If 930mV @ 10A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 600μA @ 120V
Operating Temperature - Junction -40°C ~ 150°C
Mounting SMD
Package TO-263-3, D2Pak (2 Leads + Tab) Variant
Manufacturer Package SMPD
Win Source Part Number 798956-V20DM120C-M3/I
Popularity Medium
Supply and Demand Status Limited
Family Name V20DM120C
Introduction Date May 13, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian V20DM120C-M3/I CAD Model

Description

The Vishay Semiconductor Diodes Division 798956-V20DM120C-M3/I is a Schottky diode.

  • Packaging: Reel
  • Voltage - DC Reverse (Vr) (Maximum): 120V
  • Voltage - Forward (Vf) (Maximum) @ If: 930mV @ 10A
  • Current - Average Rectified (Io) (per diode): 10A
  • Current - Reverse Leakage @ Vr: 600μA @ 120V
  • Diode Configuration: 1 Pair Common Cathode
  • Mounting Style: SMD
  • Speed: Fast Recovery = 200mA (Io)
  • Operating Temperature - Junction: -40°C to 150°C
  • Alternative Parts: V20DM120CHM3/I, STPS20L120CFP, MBR20120CT
  • Supply and Demand Status: Limited
