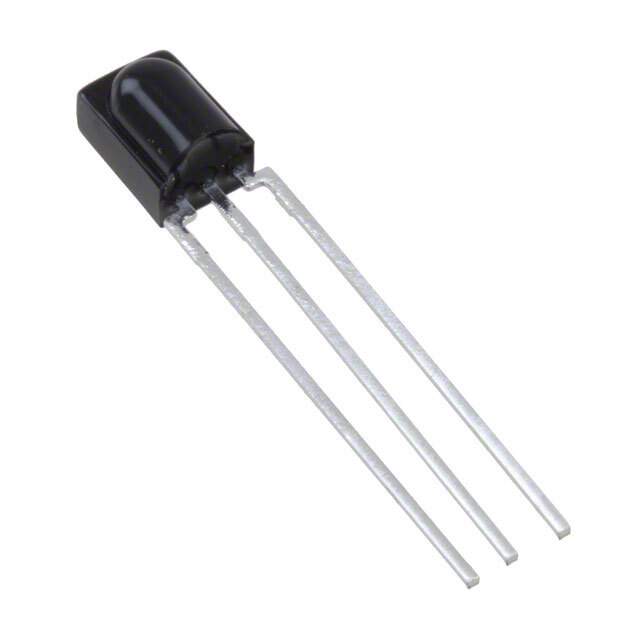

TSOP38338 Real Image
Same model may have multiple batches, images only for reference.

TSOP38338

Part No TSOP38338
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MOD 38KHZ DOME RADIAL / IR Remote Receiver 38kHz 90° 24m 3-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Standard Package 1500
Category Sensors Transducers
Family Optical Sensors - Photo Detectors - Remote Receiver
Sensing Distance 45m
B.P.F. Center Frequency 38.0kHz
Operating Supply Voltage 2.5 V ~ 5.5 V
Current - Supply 450µA
Orientation Side View
Mounting Style Through Hole
Operating Temperature Range -25°C ~ 85°C (TA)
Catalog TSOP381 TSOP383 and TSOP393
Win Source Part Number 092269-TSOP38338
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name TSOP38338
Introduction Date October 07, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TSOP38338 CAD Model

Description

The Vishay Optical Sensor is a through hole mounting electronic component with a sensing distance of 45m and a B.P.F. center frequency of 38.0kHz.

  • Operating Supply Voltage: 2.5 V ~ 5.5 V
  • Current Supply: 450µA
  • Standard Package: 1500
  • Catalog: TSOP381, TSOP383, and TSOP393
  • Market: in the open market
  • Supply and Demand Status: limited
  • Compliance: compliant with halogen-free regulations
  • Estimated EOL date: 2026
  • Introduction Date: October 07, 2008
  • Product: EAR99 product originating from the Philippines
