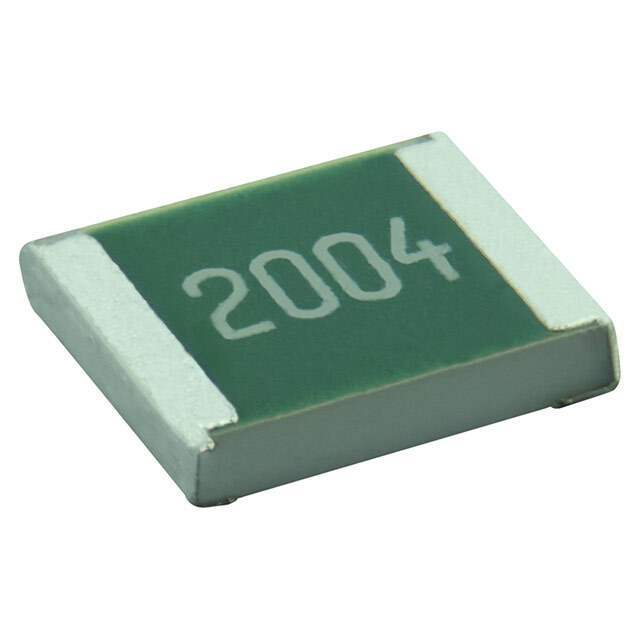

TNPW1210240RBEEA Vishay Dale TNPW1210240RBEEA Vishay Dale
Same model may have multiple batches, images only for reference.

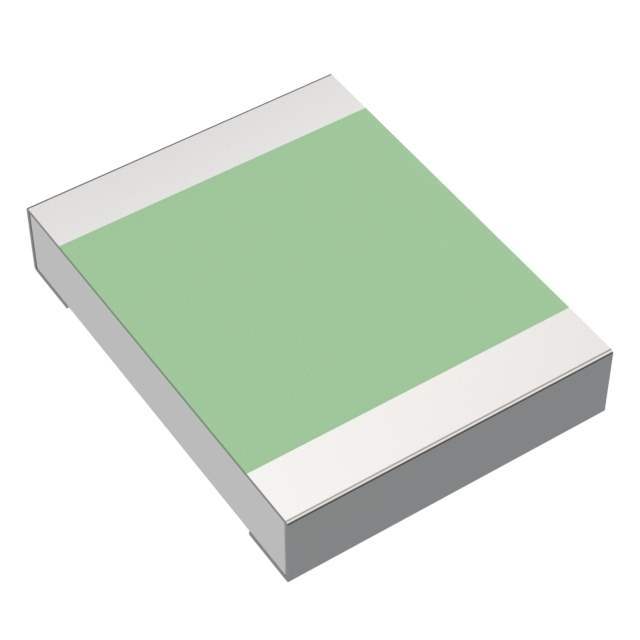

TNPW1210240RBEEA Vishay Dale TNPW1210240RBEEA Vishay Dale
TNPW1210240RBEEA Vishay Dale TNPW1210240RBEEA Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW1210240RBEEA

Part No TNPW1210240RBEEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 240 OHM 0.1% 1/2W 1210
Datasheet
TNPW1210240RBEEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 240 Ohms
Tolerance ±0.1%
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 155°C
Size / Dimension 0.126" L x 0.096" W (3.20mm x 2.45mm)
Height - Seated (Max) 0.030" (0.75mm)
Ultra Librarian 3D Model Ultra Librarian TNPW1210240RBEEA CAD Model

Description

Vishay Automotive Grade TNPW e3 thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include automotive, industrial, test and measuring equipment, and medical equipment.
