Same model may have multiple batches, images only for reference.

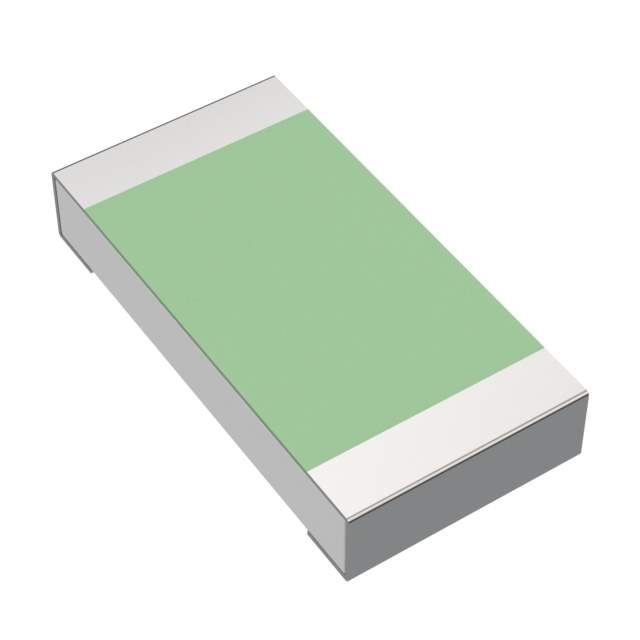

TNPW1206100KBEEN Real Image
Same model may have multiple batches, images only for reference.

TNPW1206100KBEEN

Part No TNPW1206100KBEEN
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 100K OHM 0.1% 1/4W 1206 / 100 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
Datasheet
TNPW1206100KBEEN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series TNPW e3
Package Tape & Reel
Resistance 100 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number TNPW1206
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-3832-1,541-3832-2,TNPW1206 100K 0.1% T9 E52 E3,TNPW1206100KBEEN-ND,541-3832-6
Standard Package 1,000
Win Source Part Number 959584-TNPW1206100KBEEN
Ultra Librarian 3D Model Ultra Librarian TNPW1206100KBEEN CAD Model

Description

The Vishay Chip Resistor is a thin film resistor designed for surface-mount applications.

  • Power Rating: 0.25W
  • Resistance: 100 kOhms
  • Application: Automotive and high-reliability applications
  • Design Features: Anti-sulfur and moisture-resistant
  • Temperature Coefficient: ±25ppm/°C
  • Operating Temperature Range: -55°C to 155°C
