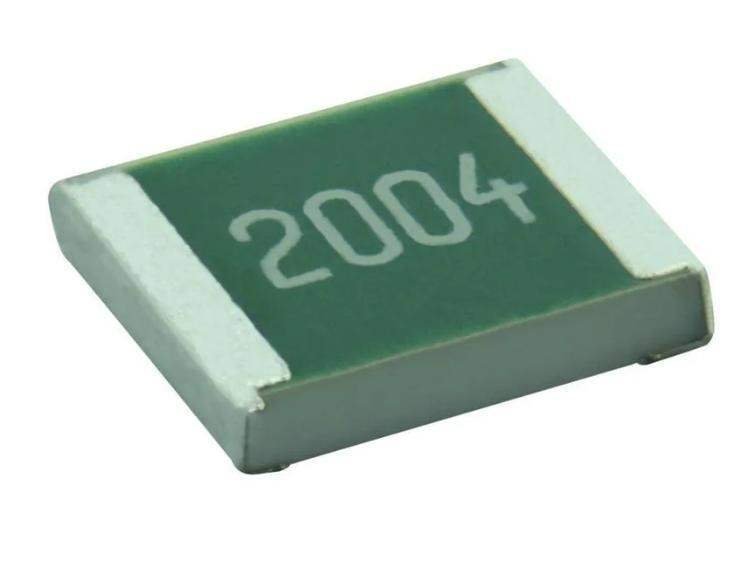

Same model may have multiple batches, images only for reference.
TNPW04025K69BHED Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW04025K69BHED

Part No TNPW04025K69BHED
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description Thin Film Resistors - SMD TNPW0402 5K69 0.1% T-2 ET7 e3
Datasheet
TNPW04025K69BHED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1211529-TNPW04025K69BHED
Manufacturer Vishay Dale
Category Resistors- Chip Resistor - Surface Mount
Resistance (Ohms) 5.69 kOhms
Tolerance 0.1 %
Power Rating 100 mW (1/10 W)
Height 0.35 mm
Length 1 mm
Mounting Style PCB Mount
Technology Thin Film
Width 0.5 mm
Ultra Librarian 3D Model Ultra Librarian TNPW04025K69BHED CAD Model

Description

Vishay Automotive Grade TNPW e3 thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include automotive, industrial, test and measuring equipment, and medical equipment.
