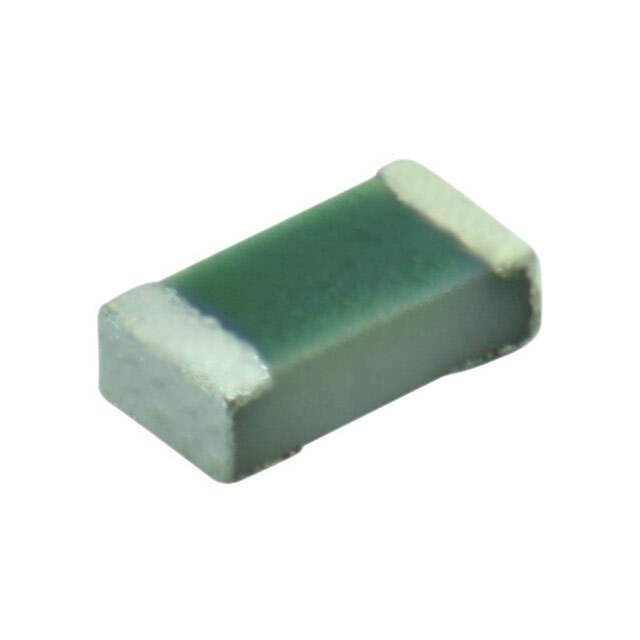

TNPW04022K37BEED Vishay Dale TNPW04022K37BEED Vishay Dale
Same model may have multiple batches, images only for reference.
TNPW04022K37BEED Vishay Dale TNPW04022K37BEED Vishay Dale
TNPW04022K37BEED Vishay Dale TNPW04022K37BEED Vishay Dale
Same model may have multiple batches, images only for reference.

TNPW04022K37BEED

Part No TNPW04022K37BEED
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 2.37K OHM 0.1% 0.13W 0402
Datasheet
TNPW04022K37BEED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Category Resistors > Chip Resistor - Surface Mount
Part Status Active
Resistance 2.37 kOhms
Tolerance ±0.1%
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Operating Temperature -55°C ~ 175°C
Package / Case 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Ultra Librarian 3D Model Ultra Librarian TNPW04022K37BEED CAD Model

Description

Vishay Automotive Grade TNPW e3 thin film flat chip resistors are the perfect choice for most fields of modern electronics where highest reliability and stability is of major concern. Typical applications include automotive, industrial, test and measuring equipment, and medical equipment.
