Same model may have multiple batches, images only for reference.

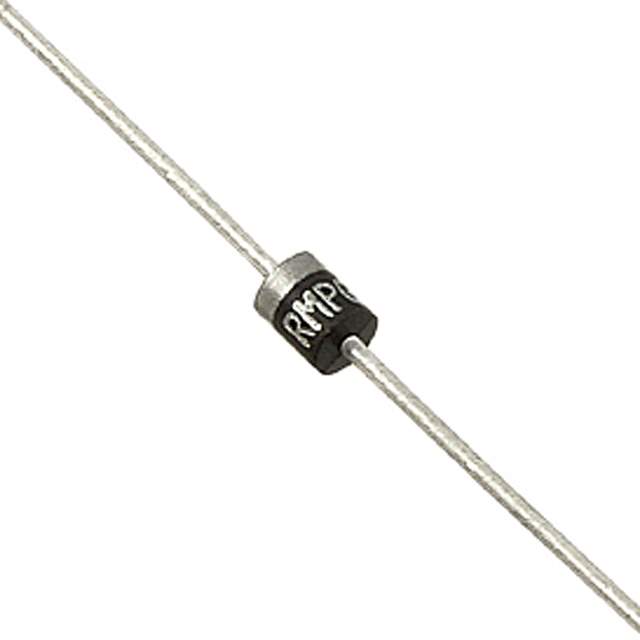

TMPG06-15AHE3_A/C Real Image
Same model may have multiple batches, images only for reference.

TMPG06-15AHE3_A/C

Part No TMPG06-15AHE3_A/C
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 12.8VWM 21.2VC MPG06 / 21.2V Clamp 18.9A Ipp Tvs Diode Through Hole MPG06
Datasheet
TMPG06-15AHE3_A/C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series Automotive, AEC-Q101, PAR®
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12.8V
Voltage - Breakdown (Min) 14.3V
Voltage - Clamping (Max) @ Ipp 21.2V
Current - Peak Pulse (10/1000µs) 18.9A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -65°C ~ 185°C (TJ)
Mounting Type Through Hole
Package / Case MPG06, Axial
Supplier Device Package MPG06
Base Product Number TMPG06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 5,500
Win Source Part Number 997269-TMPG06-15AHE3_A/C
Ultra Librarian 3D Model Ultra Librarian TMPG06-15AHE3_A/C CAD Model

Description

The Vishay TMPG06-15AHE3_A/C is a zener diode designed for use in automotive applications.

  • Manufacturer: Vishay
  • Application: Automotive
  • Reverse Standoff Voltage: 12.8V
  • Breakdown Voltage: 14.3V
  • Maximum Clamping Voltage: 21.2V @ 400W Peak Pulse Power
  • Channel Configuration: Unidirectional
  • Current Peak Pulse: 18.9A @ 10/1000µs
  • Mounting Type: Through-Hole
  • Package: Axial MPG06
  • Temperature Range: -65°C to 185°C (TJ)
