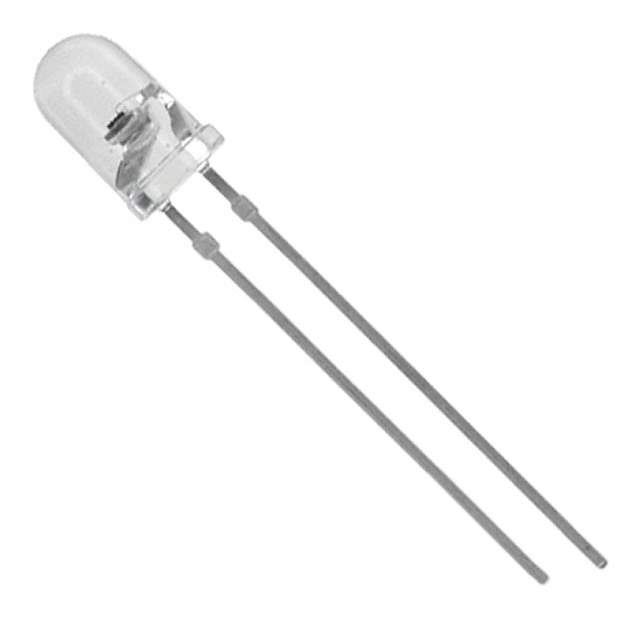

TEPT5600 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Voltage - Collector Emitter Breakdown (Maximum) 6V
Current - Collector (Ic) (Maximum) 20mA
Current - Dark (Id) (Maximum) 50nA
Wavelength 570nm
Viewing Angle 40°
Power - Max 100mW
Mounting Style Through Hole
Orientation Top View
Operating Temperature Range -40°C ~ 85°C (TA)
Package Radial
Win Source Part Number 1266759-TEPT5600
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TEPT5600 CAD Model

Description

The Vishay Semiconductor Opto Division TEPT5600 is a radial through-hole sensor designed for use in various transducer applications.

  • Maximum Power Rating: 100mW
  • Viewing Angle: 40°
  • Wavelength: 570nm
  • Current Collector (Ic) Maximum: 20mA
  • Voltage Collector Emitter Breakdown (maximum): 6V
  • Current Dark (Id) Maximum: 50nA
  • RoHS Compliant: Yes
  • Supply and Demand Status: Limited
