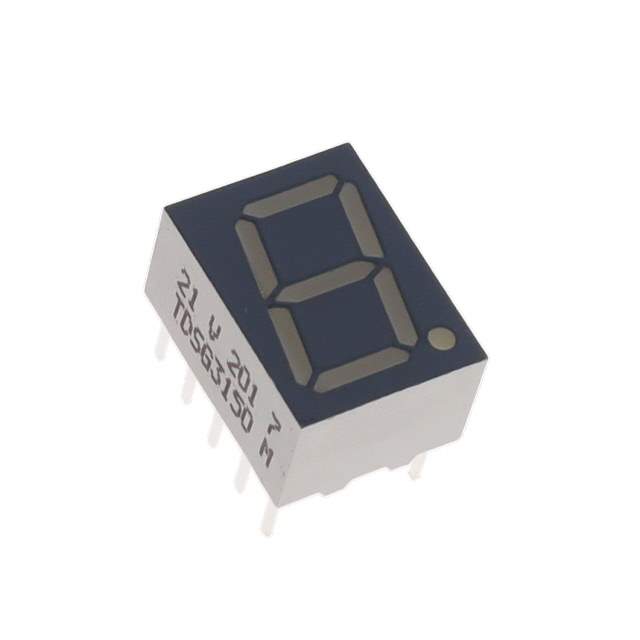

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Manufacturer Vishay Semiconductor Opto Division
Packaging Bulk
Number of Characters 1
Size / Dimension 0.500" H x 0.372" W x 0.252" D (12.60mm x 9.45mm x 6.40mm)
Digit/Alpha Size 0.39" (10.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) (Typ) 2.4V
Current - Test 20mA
Millicandela Rating 6.8mcd
Wavelength - Peak 565nm
Power Dissipation (Max) 480mW
Case / Package 10-DIP (0.300", 7.62mm)
Base Product Number TDSG3150
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 400
Win Source Part Number 1331887-TDSG3150
Ultra Librarian 3D Model Ultra Librarian TDSG3150 CAD Model

Description

The Vishay Semiconductor Opto Division TDSG3150 is a high-quality LED character and numeric display module designed for use in various electronic circuits.

  • Color: Green
  • Millicandela Rating: 6.8mcd
  • Forward Voltage: 2.4V @ 20mA
  • Peak Wavelength: 565nm
  • Power Dissipation: 480mW
  • Package: 10-DIP (0.300", 7.62mm)
  • Display Type: 7-segment
  • Digit/Alpha Size: 0.39" (10.00mm)
  • Common Pin: Common anode
