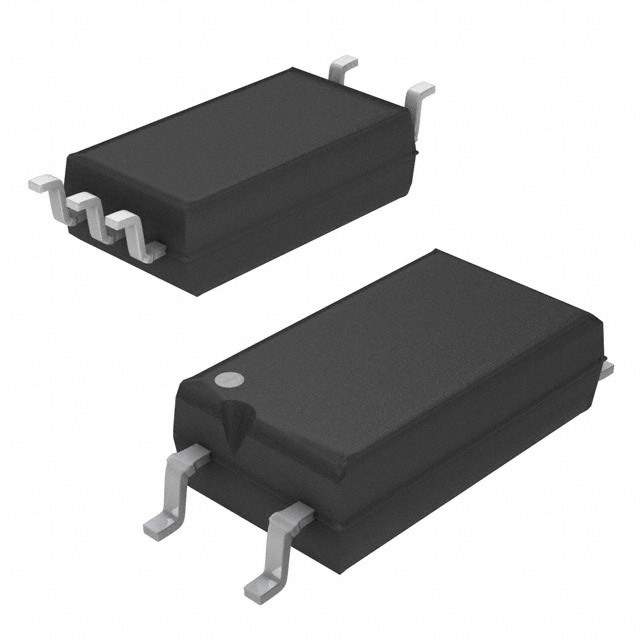

TCLT1101 Real Image
Same model may have multiple batches, images only for reference.

TCLT1101

Part No TCLT1101
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE SO6L
Datasheet
TCLT1101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 40% @ 10mA
Maximum DC Current Transfer Ratio 80% @ 10mA
Switching Turn-On and Turn-Off Time 6μs, 5μs
Rise and Fall Time 3μs, 4.7μs
Input Type DC
Maximum Output Voltage 70V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 60mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SOP, 5 Pin
Win Source Part Number 1106384-TCLT1101
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCLT1101 CAD Model

Description

The Vishay TCLT1101 optocoupler is a single channel device with a minimum DC current transfer ratio of 40% @ 10mA and a maximum DC current transfer ratio of 80% @ 10mA.

  • Manufacturer: Vishay
  • Number of Channels: Single
  • Minimum DC Current Transfer Ratio: 40% @ 10mA
  • Maximum DC Current Transfer Ratio: 80% @ 10mA
  • Forward Voltage: 1.25V
  • Isolation Voltage: 5000Vrms
  • Maximum Output Voltage: 70V
  • Package: 6-SOP, 5 pin
  • Operating Temperature Range: -40°C to 100°C
  • Switching Turn-On Time: 6μs
  • Switching Turn-Off Time: 5μs
  • Rise Time: 3μs
  • Fall Time: 4.7μs
