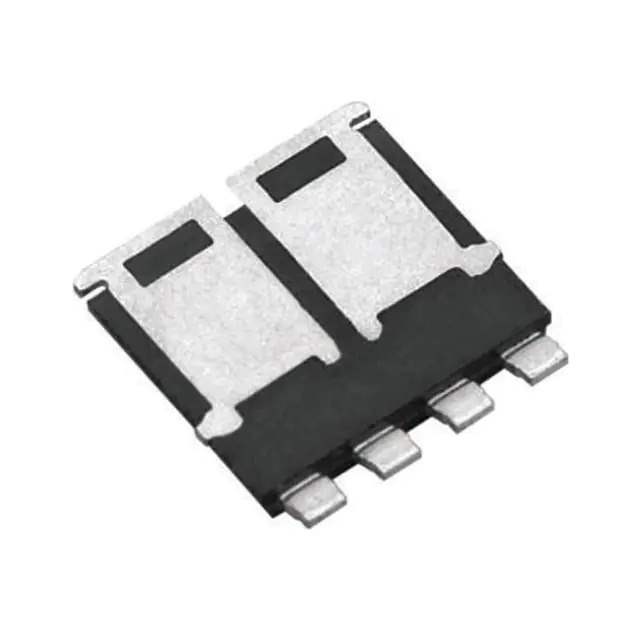

SQJQ910EL-T1_GE3 Real Image

SQJQ910EL-T1_GE3 Real Image

SQJQ910EL-T1_GE3 Real Image

Same model may have multiple batches, images only for reference.

SQJQ910EL-T1_GE3 Real Image

SQJQ910EL-T1_GE3 Real Image

Same model may have multiple batches, images only for reference.

SQJQ910EL-T1_GE3

Get a Quote

Part No	SQJQ910EL-T1_GE3
Manufacturer	Vishay
Catalog	FETs - Arrays
Description	MOSFET 2 N-CH 100V POWERPAK8X8 / Mosfet Array 100V 70A (Tc) 187W Surface Mount PowerPAK® 8 x 8 Dual
Datasheet	SQJQ910EL-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Package	Tape & Reel
Technology	MOSFET (Metal Oxide)
Configuration	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Rds On (Max) @ Id, Vgs	8.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	58nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2832pF @ 50V
Power - Max	187W
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerPAK® 8 x 8 Dual
Supplier Device Package	PowerPAK® 8 x 8 Dual
Base Product Number	SQJQ910
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1336917-SQJQ910EL-T1_GE3
Ultra Librarian 3D Model	Ultra Librarian SQJQ910EL-T1_GE3 CAD Model

Description

The Vishay MOSFET is a reliable and efficient N-channel power transistor that is designed to handle a maximum power dissipation of 187W.

Drain-Source Voltage: 100V
Continuous Drain Current: 70A (Tc)
Gate-Source Threshold Voltage: 2.5V @ 250µA
Maximum Gate Charge: 58nC @ 10V
Rds On (Max) @ Id, Vgs: 8.6mOhm @ 10A, 10V
Application: Discrete Semiconductor Products
Package: PowerPAK® 8 x 8 Dual
Temperature Range: -55°C ~ 175°C (TJ)
Supply and Demand Status: Unlimited
