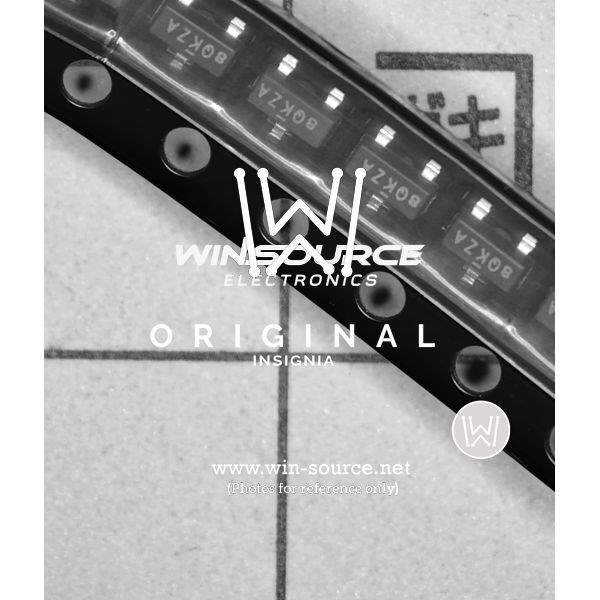

The SQ2337ES-T1-GE3 is an N-Channel, 20 V (V_DS) MOSFET from Vishay Siliconix. This MOSFET is designed for high efficiency and performance in a variety of applications. It features a low on-resistance and is optimized for fast switching, making it well-suited for load switching and power management systems.

Applications

• Load Switching: The SQ2337ES-T1-GE3 is frequently used to control power distribution in portable devices and battery-operated systems.
• DC-DC Conversion: Implemented in DC-DC converters, particularly in synchronous rectification to improve efficiency.
• Power Management: Used in power management circuits for mobile phones, tablets, and laptops.
• Battery Protection: Integrated into battery protection circuits to prevent overcharge, over-discharge, and short-circuit conditions.
• LED Backlighting: Commonly used in LED backlighting applications for displays.

Features

• Low On-Resistance (R_DS(on)): Minimizes power loss and enhances efficiency.
• Fast Switching Speed: Facilitates efficient operation in high-frequency switching circuits.
• Logic Level Gate Drive: Enables direct control from low-voltage logic.
• TrenchFET® Power MOSFET Technology: Provides high power density and efficiency.
• Halogen-Free and RoHS Compliant: Meets environmental compliance standards.

Benefits

• Enhanced Efficiency: Low on-resistance reduces power dissipation, resulting in higher efficiency.
• Extended Battery Life: Reduced power losses lead to longer battery life in portable devices.
• Reduced Heat Dissipation: Lower R_DS(on) means less heat is generated, simplifying thermal management.
• Simplified Design: Logic-level gate drive simplifies interfacing with control circuits.
• Environmentally Friendly: Halogen-free and RoHS compliant.

Additional Details

The SQ2337ES-T1-GE3 is packaged in a PowerPAK® SC-70 package, offering excellent thermal performance with a small footprint. Key specifications include a drain-source voltage (V_DS) of 20V, a continuous drain current (I_D) of up to 8A (dependent on mounting and cooling), and a gate-source voltage (V_GS) of ±12V. It's designed for operation across a wide temperature range, ensuring reliability in various operating environments. The typical gate charge (Q_g) is low, contributing to quicker switching speeds and reduced switching losses.
