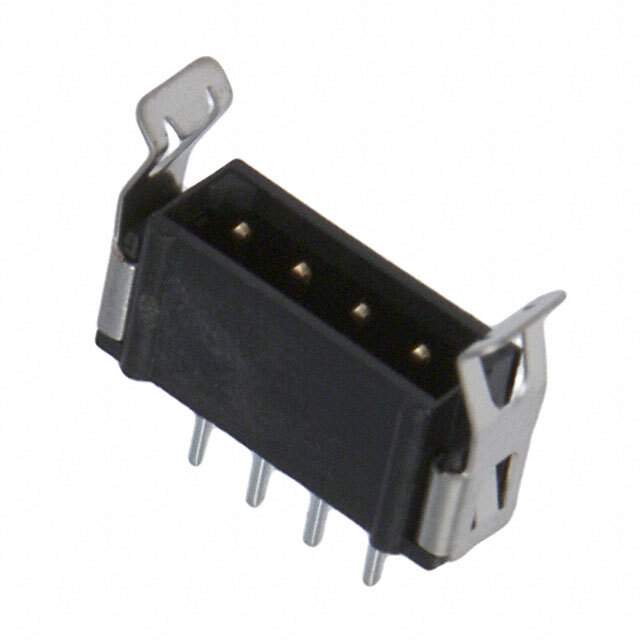

M80-8820442

Name: M80-8820442
Brand: Harwin Inc.
SKU: 1351829
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M80-8820442
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2MM / Connector Header Through Hole 4 position 0.079" (2.00mm)
Datasheet	M80-8820442 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate L-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A
Voltage Rating	800V
Mated Stacking Heights	7.23mm, 10.2mm, 13.46mm
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	M80-882
Standard Package	21
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351829-M80-8820442
Ultra Librarian 3D Model	Ultra Librarian M80-8820442 CAD Model

Description

The Datamate L-Tek connector is a male pin header designed for use in rectangular connectors.

Positions: 4
Loaded: All Contacts
Connector Type: Header
Contact Type: Male Pin
Termination: Solder
Fastening Type: Latch Lock
Package: Tube
Contact Material: Phosphor Bronze
Voltage Rating: 800V
Mating Stacking Heights: 7.23mm, 10.2mm, 13.46mm
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Pitch Mating: 0.079" (2.00mm)
Contact Finish: Gold
Contact Finish Thickness: 29.5μin (0.75μm)
Contact Finish Post: Tin
Contact Finish Thickness Post: 118.1μin (3.00μm)
Insulation Color: Black
Mounting Technology: Through-Hole
